| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| I/O Isolation | |
| Input Current (No Load) | |
| Input Voltage Range | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Start-up Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Surge Voltage | |
| Tape & Reel | |
| Type | |
| Under Voltage Shut Down | |
| Voltage | |
| Voltage Set Accuracy | |
| Width |

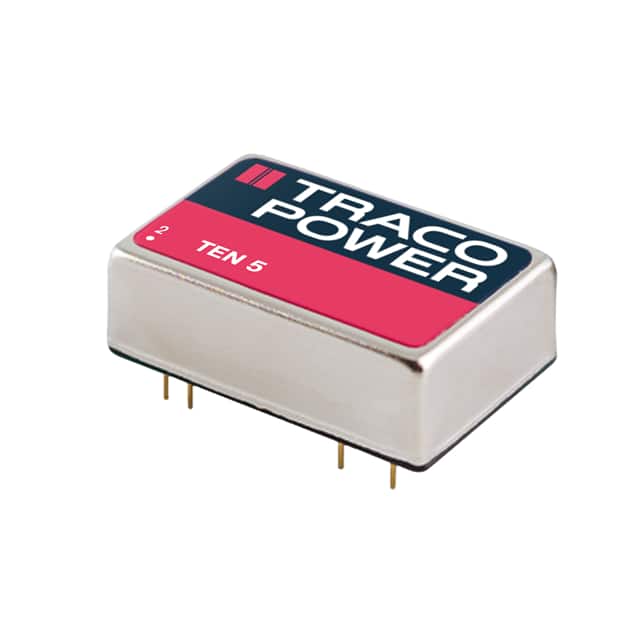

The Traco Power TEN 5-2423 is a 6W isolated DC/DC converter module from the TEN 5 series. It provides dual ±15V outputs, each capable of delivering 200mA, with a nominal 24V input (18-36V range). The module achieves up to 86% efficiency and offers 1500VDC I/O isolation, making it suitable for applications requiring clean isolated power rails.
Key electrical specifications include a voltage set accuracy of 1.0%, line regulation of 0.3% over the input range, and indefinite short circuit protection (SCP). The converter operates over a wide temperature range of -40°C to 85°C with derating, and includes an input filter that meets EN 55022 class A and FCC level A without external components.
The module is housed in a shielded metal case with a 24-DIP package (7 leads) and through-hole mounting. Dimensions are 31.8mm x 20.3mm x 10.2mm (1.25" x 0.80" x 0.40"). It is designed for ITE (commercial) applications such as industrial systems, communications equipment, and battery-powered devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.99 | $28.99 |
| 10+ | $28.55 | $28.55 |
| 20+ | $28.10 | $28.10 |
| 50+ | $26.76 | $26.76 |
| 100+ | $24.53 | $24.53 |
| 200+ | $24.08 | $24.08 |
| 500+ | $22.08 | $22.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEN 5-2423 provides dual ±15V outputs, each rated at 200mA.
-40°C to 85°C with derating.
24-DIP Module, 7 Leads.
The component is marked as RoHS3 Compliant, but this has not been independently verified.
1500 VDC.
18-36 VDC, with 24 VDC nominal.
86%.
