| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Size / Dimension | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output 1 | |
| Width |

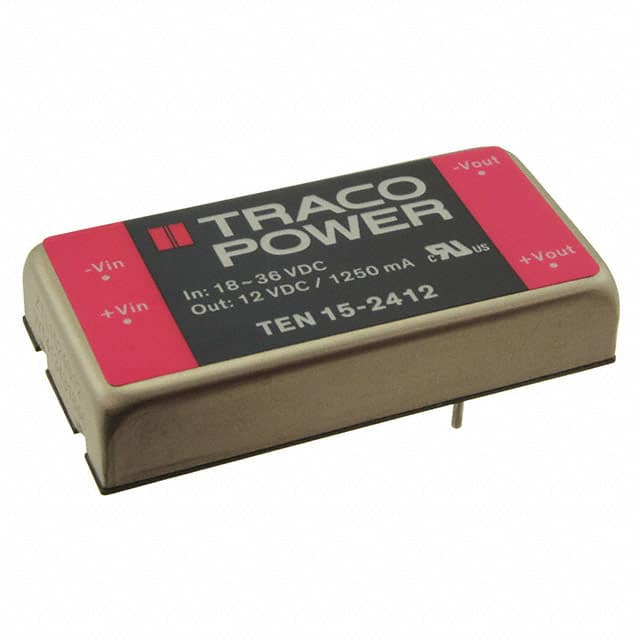

The Traco Power TEN 15-2412 is an isolated DC-DC converter module designed for commercial ITE (Information Technology Equipment) applications. It delivers a regulated 12V output at up to 1.25A, providing 15W of output power. The converter operates from a minimum input voltage of 18V and features typical efficiency of 85%.
Protection features include overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP), ensuring reliable operation in demanding environments. The device is rated for an operating temperature range of -40°C to 85°C with derating.
The module is housed in a 5-DIP package with 4 leads and measures 50.8mm x 25.4mm x 10.2mm. It is designed for through-hole mounting, making it suitable for integration into various power supply designs on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $51.90 | $51.90 |
| 10+ | $50.57 | $50.57 |
| 20+ | $50.06 | $50.06 |
| 50+ | $49.68 | $49.68 |
| 100+ | $49.31 | $49.31 |
| 200+ | $48.83 | $48.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 12V with a maximum output current of 1.25A.
The TEN 15-2412 is rated for 15W output power.
The minimum input voltage is 18V. The maximum input voltage is not specified in available data.
It includes overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP).
The operating temperature range is -40°C to 85°C with derating.
It comes in a 5-DIP Module with 4 leads for through-hole mounting.
