| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| I/O Isolation Voltage | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Length | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Start-up Voltage | |
| Surge Voltage | |
| Tape & Reel | |
| Type | |
| Under Voltage Shut Down | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output 1 | |
| Width |

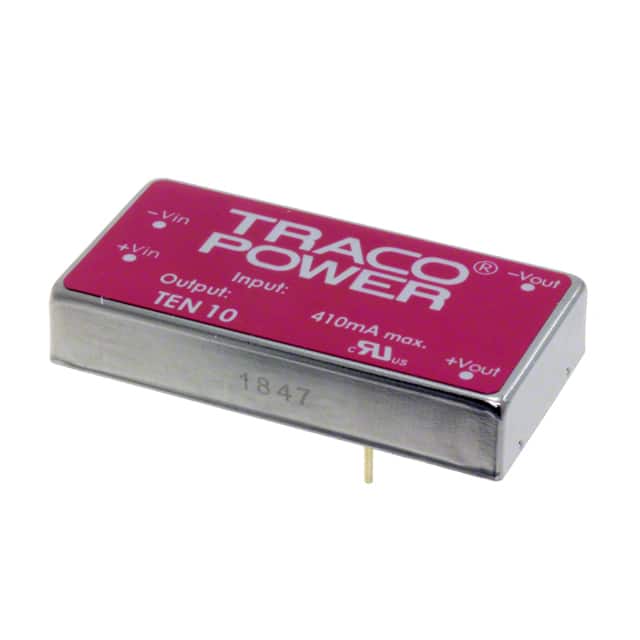

The Traco Power TEN 10-2415 is a high-performance isolated DC/DC converter from the TEN 10 series, delivering 10 watts of output power. It provides a single regulated 24 VDC output at up to 415 mA from a nominal 24 VDC input (18-36 VDC range).
This converter features a wide 2:1 input range, high efficiency of 83%, and an operating temperature range of -40°C to +85°C (with derating). It includes built-in protection features such as overcurrent (OCP), overvoltage (OVP), and short-circuit (SCP) protection. The module also incorporates an input filter to meet EN 55022 Class A and FCC Level A EMI standards without external components.
Housed in a shielded metal case with an insulated baseplate, the TEN 10-2415 uses an industry-standard pinout and is designed for through-hole mounting in a 5-DIP module with 4 leads. Its compact size (50.8mm x 25.4mm x 10.2mm) makes it suitable for space-constrained applications in industrial electronics, instrumentation, and battery-operated equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $49.28 | $49.28 |
| 10+ | $48.45 | $48.45 |
| 20+ | $47.22 | $47.22 |
| 50+ | $46.64 | $46.64 |
| 100+ | $45.88 | $45.88 |
| 200+ | $43.29 | $43.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24 VDC with a maximum output current of 415 mA.
The input voltage range is 18 VDC to 36 VDC (nominal 24 VDC).
The operating temperature range is -40°C to +85°C with derating.
It includes overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP).
It is a through-hole 5-DIP Module with 4 leads.
The typical efficiency is 83%.
The I/O isolation voltage is 1500 VDC.
