| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,949 pcs
|
32949 pcs | On Request | 1 | On Request | On Request | 17+16 | On Request | On Request | |
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Diode Type | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Package Form | |
| Power Dissipation | |
| Spectral Range | |
| Storage Temperature | |
| Tape & Reel | |
| Tape and Reel | |
| Viewing Angle | |
| Viewing Angle (Typical) | |
| Voltage | |
| Wavelength | |
| capacitance (Typical @ VR = 0 V, f = 1 MHz, E = 0) | |
| capacitance (Typical @ VR = 3 V, f = 1 MHz, E = 0) |

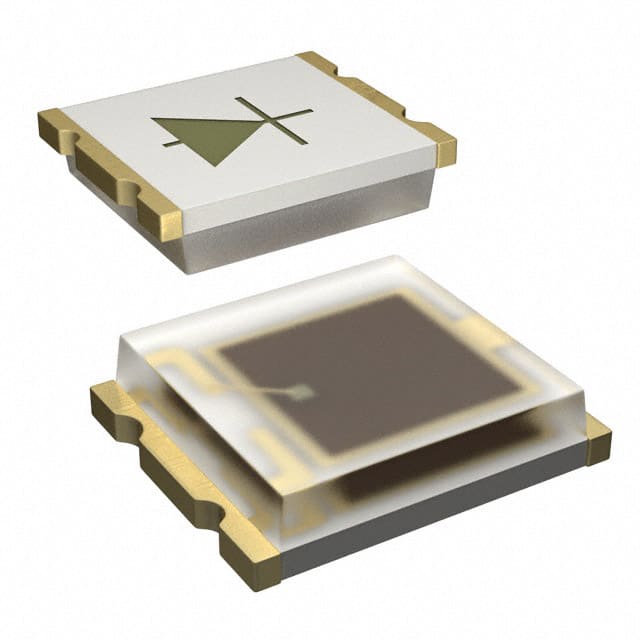

The Vishay Dale TEMD5510FX01 is a PIN photodiode designed for ambient light sensing applications. It comes in a miniature surface-mount package with a top-view form factor and dimensions of 5 x 4.24 x 1.12 mm.
This photodiode offers high photo sensitivity and is adapted to the human eye's responsivity, with a peak sensitivity at 540 nm. It has a spectral range from 430 nm to 610 nm and an angle of half sensitivity of ± 65°. The device operates within a temperature range of -40°C to 100°C and has a reverse voltage rating of 16 V. Its typical reverse dark current is 2 nA, and it has a capacitance of 1600 pF at 0V and 730 pF at 3V.
Key features include AEC-Q101 qualification and a suppression filter for near-infrared radiation. The sensitive area is 7.5 mm². The component is suitable for lead (Pb)-free reflow soldering and has a floor life of 72 hours, MSL 4.
Applications include automotive sensors, backlight dimmers, notebooks, and computers. The TEMD5510FX01 is available on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak sensitivity wavelength is 540 nm.
The spectral range is from 430 nm to 610 nm.
The maximum reverse voltage rating is 16 V.
The typical reverse dark current is 2 nA.
The operating temperature range is -40°C to 100°C.
It is a PIN photodiode.
The sensitive area is 7.5 mm².
