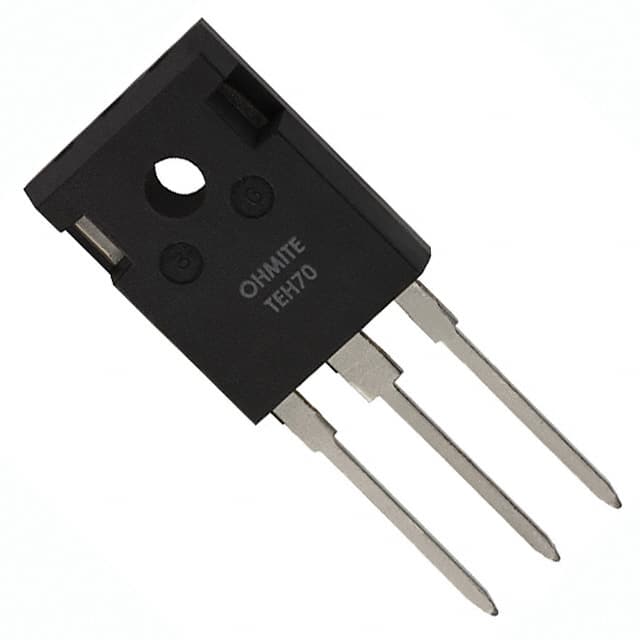

TEH70P2R00JE The Ohmite TEH70P2R00JE is a 70W thick film power resistor with a resistance value of 2 Ohms and a tolerance of ±5%. It is housed in a TO-247 package.
Mfr Part #:

TEH70P2R00JE

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite TEH70P2R00JE is a 70W thick film power resistor with a resistance value of 2 Ohms and a tolerance of ±5%. It is housed in a TO-247 package.
✓ Total Stock: 90 pcs
$ Price Range: $0.01

TEH70P2R00JE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request 1008 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TEH70P2R00JE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Insulation Resistance
Length
Number of Terminations
Power (Watts)
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Thermal Resistance
Tolerance
Width
View Similar Products (0)

TEH70P2R00JE Description

Short technical summary and product information.

The Ohmite TEH70 Series resistor, part number TEH70P2R00JE, is a high-power thick film resistor designed for demanding applications. It offers a robust 70 Watt power rating at a 25°C case temperature and features non-inductive performance.



This resistor has a resistance value of 2 Ohms with a tight tolerance of ±5%. The temperature coefficient is ±100ppm/°C, ensuring stable operation across varying temperatures. It is constructed with a thick film element on an alumina substrate and features a high-temperature plastic case.



The TEH70P2R00JE is packaged in a TO-247-3 case, suitable for through-hole mounting. Its dimensions are approximately 15.90mm in length and 5.08mm in width, with a height of 21.08mm. This series is designed for use with proper heatsinking, and the maximum base plate temperature must be monitored to establish the power rating.



Key features include low thermal resistance and RoHS compliant design. It is suitable for applications requiring reliable power dissipation and stable resistance values.

TEH70P2R00JE Quick Information

Product Type: Power Resistor
Series: TEH70
Canonical Name: Ohmite TEH70 Series 70W 2 Ohm ±5% Thick Film Power Resistor
Subcategory: Thick Film

TEH70P2R00JE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TEH70P2R00JE Estimated Pricing

Qty Low High
1+ $0.01 $0.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

TEH70P2R00JE Features

  • 70 Watt power rating at 25°C case temperature.
  • 2 Ohm resistance with ±5% tolerance.
  • Non-inductive thick film construction.
  • TO-247 package for through-hole mounting.
  • Requires proper heatsinking for operation.

TEH70P2R00JE Applications

  • Suitable for high power dissipation.
  • Used in demanding industrial applications.
  • Ideal for power supply circuits.
  • Reliable performance in varying temperatures.

TEH70P2R00JE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the power rating of the Ohmite TEH70P2R00JE resistor?

The TEH70P2R00JE resistor has a power rating of 70 Watts at a 25°C case temperature.

What is the resistance value and tolerance of the TEH70P2R00JE?

This resistor has a resistance value of 2 Ohms with a tolerance of ±5%.

What is the temperature coefficient for the 2-10 Ohm range of this resistor?

For resistances between 2Ω and 10Ω, the temperature coefficient is ±100ppm/°C.

What package type is the Ohmite TEH70P2R00JE resistor supplied in?

The TEH70P2R00JE resistor is supplied in a TO-247-3 package.

Does the TEH70P2R00JE resistor feature non-inductive performance?

Yes, the TEH70P2R00JE resistor features non-inductive performance.

What are the dimensions of the TO-247 package for this resistor?

The TO-247 package has dimensions of approximately 15.90mm in length and 5.08mm in width, with a seated height of 21.08mm.
