| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cooling Type | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

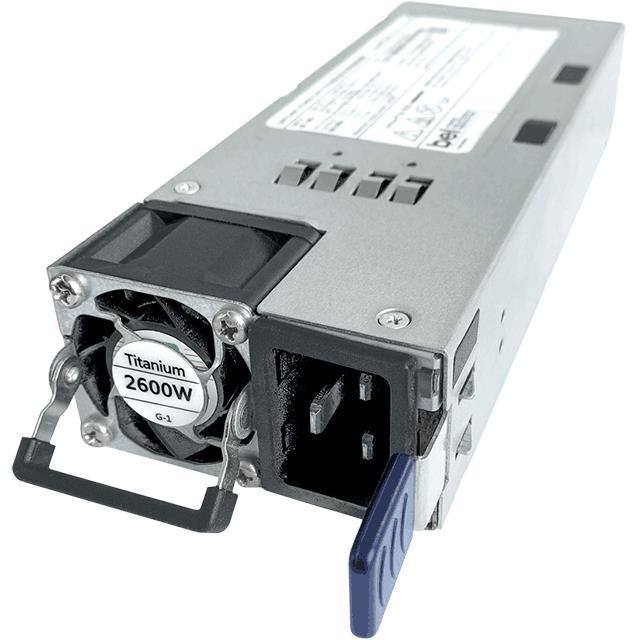

The Bel Power Solutions TEC2600-12-074NA is a 2600W Common Redundant Power Supply (CRPS) designed for systems utilizing distributed power architectures. It efficiently converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a stable 12 VDC output.
This power supply boasts a high-power density, contributing to improved system efficiency and reliability. It is hot-swappable and supports N+1 redundant configurations, ensuring continuous operation and ease of maintenance. The full digital control enables remote setup, monitoring, and control capabilities.
Key electrical specifications include an input voltage range of 90-264 VAC or 180-300 VDC, a nominal output voltage of 12.2 VDC, and an output power of up to 2600W. It features multiple protections such as overvoltage, overtemperature, overcurrent, overpower, and short circuit protection. The unit meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Designed in the Intel Standard CRPS Form Factor, the TEC2600-12-074xA has dimensions of 185 x 73.5 x 40 mm. It is certified to UL/CSA 62368-1 and EN/IEC 62368-1 standards. The power supply also offers 80 PLUS Titanium efficiency.
The nominal output voltage is 12.2 VDC.
The output power is up to 2600 W.
It accepts input voltages from 90 to 264 VAC or 180 to 300 VDC.
The power supply features 80 PLUS Titanium efficiency, reaching up to 96% typical.
The dimensions are 185 x 73.5 x 40 mm.
The operating temperature range is 0°C to 50°C.
Yes, it supports hot-swappable and N+1 redundant architectures.
