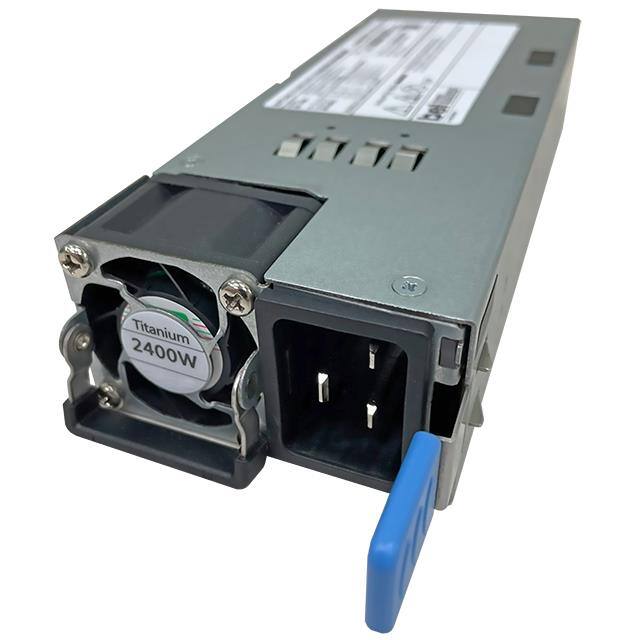

The Bel Power Solutions TEC2401-12-074NA is a 2400W Common Redundant Power Supply (CRPS) designed for powering systems using distributed power architectures. It converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC.
This power supply boasts 80 PLUS Titanium efficiency and offers a high power density for improved system efficiency and reliability. Key electrical specifications include an input voltage range of 90-264 VAC or 180-300 VDC, a nominal output voltage of 12.2 VDC, and a maximum output current of 195A. It also provides a standby output of 12 VSB at 2.1A.
Designed for demanding applications, the TEC2401-12-074NA includes multiple protections such as overvoltage, overtemperature, overcurrent, overpower, and short circuit protection. It supports hot-swappable operation and N+1 redundant architectures, enhancing system uptime and maintainability.
The unit conforms to the Intel Standard CRPS Form Factor with dimensions of 185 x 73.5 x 40 mm. It is suitable for applications like networking switches, servers, and telecommunications equipment. The power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
The nominal output voltage is 12.2 VDC with a maximum output current of 195 A.
The low voltage AC range is 90 VAC to 140 VAC, the high voltage AC range is 180 VAC to 264 VAC, and the HVDC range is 180 VDC to 300 VDC.
The standby output is 12 VSB rated at 2.1 A.
The operating temperature range is 0°C to 50°C.
Typical efficiency is 96% at 230 VAC / 60 Hz, 50% load, with 80 PLUS Titanium efficiency.
The unit measures 185.0 mm x 73.5 mm x 40.0 mm (7.28 x 2.89 x 1.57 in).
The supply includes overvoltage, overtemperature, overcurrent, overpower, and short circuit protection.
