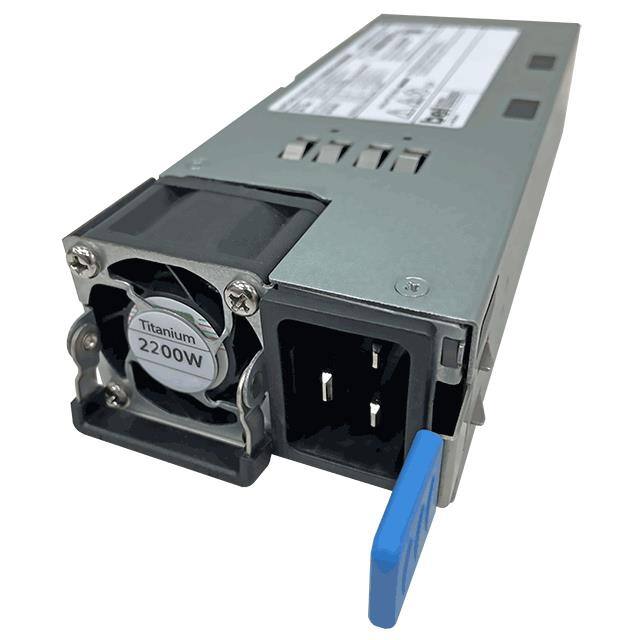

The TEC2200-12-074NA from Bel Power Solutions is a 2200 Watt Common Redundant Power Supply (CRPS) designed for systems requiring distributed power architectures. It converts AC mains power or High Voltage DC bus voltages (HVDC) into a stable 12.2 VDC main output.
This power supply boasts 80 PLUS Titanium efficiency, achieving up to 96% efficiency at 50% load under 230 VAC / 60 Hz conditions. It supports a wide input voltage range from 90 to 264 VAC and 180 to 300 VDC, making it versatile for various global power grids. The unit delivers a nominal output voltage of 12.2 VDC with a maximum current of 178 A.
Key features include hot-swappable capability and N+1 redundancy support, enhancing system reliability. It offers comprehensive protections against overvoltage, overtemperature, overcurrent, overpower, and short circuits. The full digital control facilitates remote setup, monitoring, and control. The power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
With dimensions of 185 x 73.5 x 40 mm, it fits within the Intel Standard CRPS Form Factor. The cooling is managed by a fan, with options for clockwise and counter-clockwise rotation. This power supply is suitable for applications in networking switches, servers, routers, and telecommunications.
The TEC2200-12-074NA has a maximum output power of 2200 W.
The input voltage range is 90 - 264 VAC and 180 - 300 VDC.
The nominal output voltage is 12.2 VDC.
The maximum output current is 178 A.
The power supply achieves up to 96% efficiency at 50% load (230 VAC / 60 Hz).
The operating temperature range is 0°C to +55°C.
The dimensions are 185 x 73.5 x 40 mm.
