TEA3718SFPTR The STMicroelectronics TEA3718SFPTR is a bipolar motor driver designed for general-purpose applications. It offers integrated control and power stage functionality.
Mfr Part #:

TEA3718SFPTR

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics TEA3718SFPTR is a bipolar motor driver designed for general-purpose applications. It offers integrated control and power stage functionality.
✓ Total Stock: 19,965 pcs
$ Price Range: $2.25

TEA3718SFPTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
19,032 pcs
On Request
19032 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
933 pcs
On Request
933 pcs On Request 1 On Request On Request 00+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TEA3718SFPTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Lead Spacing
Lead Style
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Output Current
SVHC Present
Supplier Device Package
Supply Voltage
Tape & Reel
Technology
View Similar Products (0)

TEA3718SFPTR Description

Short technical summary and product information.

The STMicroelectronics TEA3718SFPTR is a bipolar motor driver IC designed for general-purpose applications. It features an integrated control and power stage, operating with a supply voltage range of 4.75V to 5.25V and a load voltage range of 10V to 45V.

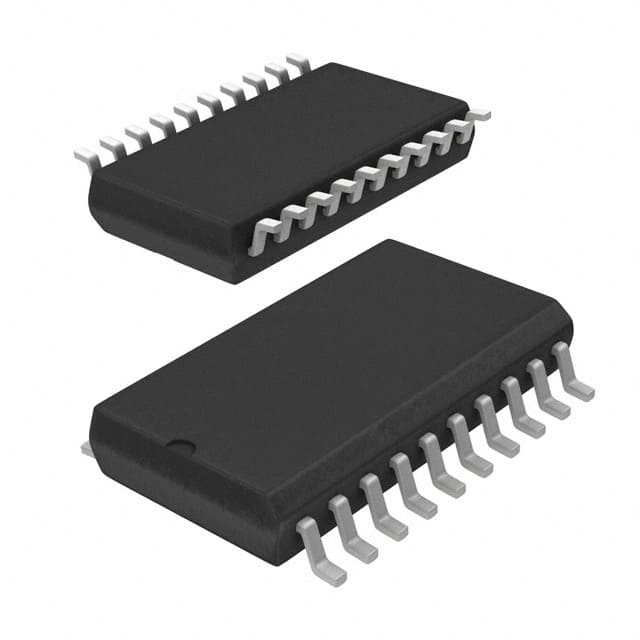

This device provides an output current of 1.5A and supports bipolar motor types. The operating temperature range is from 0°C to 150°C (TJ). It is housed in a 20-SOIC surface-mount package, facilitating integration into various electronic designs.



The TEA3718SFPTR is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. Its interface is parallel, and it supports step resolutions of 1 and 1/2.

TEA3718SFPTR Quick Information

Product Type: Bipolar Motor Driver
Series: TEA3718
Canonical Name: TEA3718SFPTR Bipolar Motor Driver
Subcategory: PMIC - Motor Drivers, Controllers

TEA3718SFPTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TEA3718SFPTR Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

TEA3718SFPTR Features

  • Bipolar motor driver with integrated control.
  • 1.5A maximum output current.
  • Wide load voltage range of 10V to 45V.
  • Operates from 0°C to 150°C.
  • Surface mount 20-SOIC package.

TEA3718SFPTR Applications

  • Drives bipolar stepper motors in automation
  • Suitable for precision positioning in robotics
  • Used in office equipment like printers
  • Ideal for industrial motion control systems
  • Controls stepper motors in CNC machinery

TEA3718SFPTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for TEA3718SFPTR?

4.75V to 5.25V.

What is the package type for TEA3718SFPTR?

20-SOIC (0.295" | 7.50mm Width) surface mount package.

What is the operating temperature range for TEA3718SFPTR?

0°C to 150°C junction temperature.

What is the output current rating?

1.5A.

What interface does the TEA3718SFPTR use?

Parallel interface.

What step resolutions are supported?

Full step and half step (1 and 1/2).

What type of motor does the TEA3718SFPTR drive?

Bipolar stepper motors.
