| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The TEA2093TS/1Z is a GreenChip synchronous rectifier controller IC designed for switched-mode power supplies. It is fabricated in a silicon-on-insulator (SOI) process and is intended for flyback power supplies, driving the external synchronous rectifier MOSFET.
Key features include an adaptive gate drive for maximum efficiency at any load and a typical supply current below 200 μA in no-load operation. The device operates in a wide output voltage range down to 0 V and its drain sense pin can handle input voltages up to 120 V. It supports USB BC, USB PD, and quick charge applications.
This controller IC is suitable for applications requiring high efficiency, such as chargers and adapters. It operates with standard and logic-level SR MOSFETs and includes undervoltage lockout (UVLO) with active gate pull-down. The TEA2093TS/1Z is supplied in a TSOP6 package, suitable for surface mounting.
It can generate its own supply voltage for battery-charging applications with low output voltage or for applications with high-side rectification, without the use of an auxiliary winding.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 150°C (TJ).
The voltage rating is 38V.
The current rating is 1.6 mA.

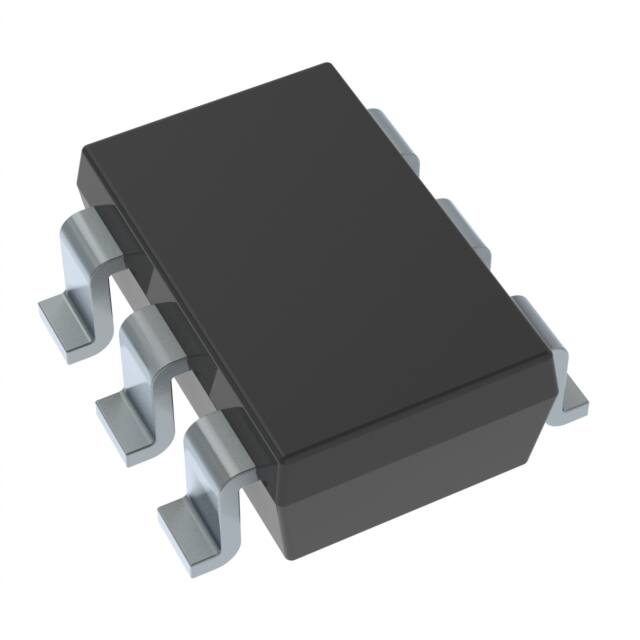

The TEA2093TS/1Z is supplied in a TSOP6 package.
Surface mount mounting is required.
The TEA2093TS/1Z is designed for flyback power supplies, chargers, adapters, and supports USB BC, USB PD, and quick charge applications.
