Mfr Part #:

TEA2017AAT/2Y

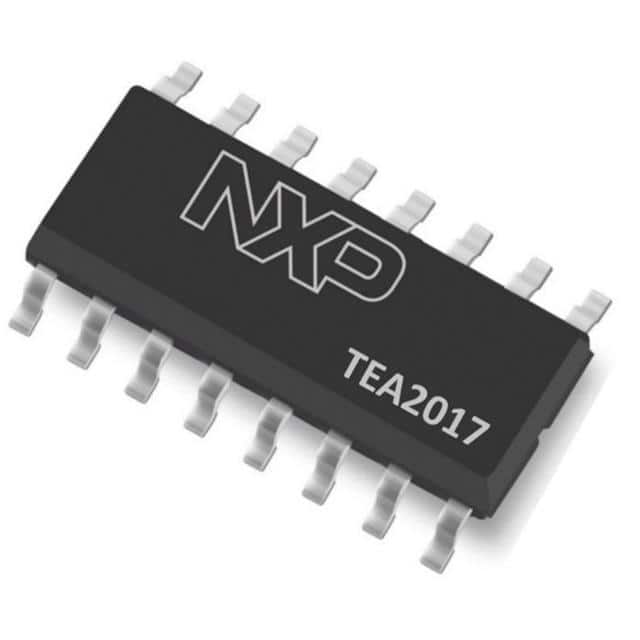

The NXP Semiconductors TEA2017AAT/2Y is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It operates with a 36V supply voltage and a temperature range of -40°C to 150°C.

✓ Total Stock: 2,021 pcs

$ Price Range: $0.75

TEA2017AAT/2Y Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,021 pcs On Request	2021 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TEA2017AAT/2Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Power Supply Controllers, Monitors
Manufacturer Name	NXP Semiconductors
Applications	Digital Power Controller
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C
Supplier Device Package	16-SO
Supply Voltage	36V
Voltage	36V

View Similar Products (0)

TEA2017AAT/2Y Description

Short technical summary and product information.

The TEA2017AAT/2Y from NXP Semiconductors is a digital configurable LLC and PFC combo controller designed for high-efficiency resonant power supplies. This integrated circuit combines LLC and PFC controller functionalities, allowing for flexible configuration of the PFC to operate in DCM/QR, CCM fixed frequency, or multimode for optimized efficiency.

This controller enables the design of complete resonant power supplies with a low component count. Its digital architecture, based on a high-speed configurable hardware state machine, ensures reliable real-time performance. Operation and protection settings can be adjusted by loading new configurations into the device to meet specific application requirements.

The TEA2017AAT/2Y offers high efficiency at low loads through an LLC low-power mode, operating between continuous switching and burst mode. It regulates the LLC output voltage via the primary capacitor voltage, providing accurate power delivery information that defines the operating mode (burst, low-power, or high-power). Transition levels are easily programmable.

Key protections include overtemperature (OTP), overcurrent (OCP), overvoltage (OVP), overpower (OPP), open-loop (OLP), and capacitive mode regulation (CMR), all independently configurable. The device is housed in a low-profile, narrow-body SO16 package, suitable for surface mounting.

TEA2017AAT/2Y Quick Information

Product Type: Power Supply Controller

Canonical Name: TEA2017AAT/2Y Digital Configurable LLC and Multimode PFC Controller

Subcategory: Power Supply Controller

TEA2017AAT/2Y Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TEA2017AAT/2Y Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TEA2017AAT/2Y Features

Digital configurable LLC and PFC controller
High-efficiency resonant power supplies
Supports multimode PFC operation
Wide operating temperature range
SO16 package for surface mounting

TEA2017AAT/2Y Applications

High-efficiency power supply designs
Resonant power supply systems
Configurable PFC applications
Low component count power supplies

TEA2017AAT/2Y FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage for the TEA2017AAT/2Y?

The supply voltage is 36V.

What is the operating temperature range for the TEA2017AAT/2Y?

The operating temperature range is -40°C to 150°C (TJ).

What package type is the TEA2017AAT/2Y supplied in?

The TEA2017AAT/2Y is supplied in a 16-SOIC package with a width of 0.154 inches (3.90mm).

What is the RoHS status of the TEA2017AAT/2Y?

The RoHS status is ROHS3 Compliant.

What is the REACH status of the TEA2017AAT/2Y?

The REACH status is REACH Unaffected.

What is the Moisture Sensitivity Level (MSL) for the TEA2017AAT/2Y?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
