Mfr Part #:

TE90A1802Q01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

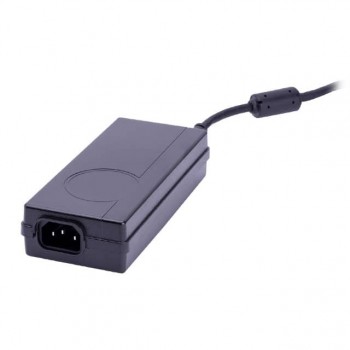

The SL Power Electronics TE90A1802Q01 is a 90W AC/DC desktop adapter with an 18V output and 5A current. It meets Level VI efficiency standards and is CE approved.

Stock on Request

TE90A1802Q01 Description

Short technical summary and product information.

This AC/DC desktop adapter from SL Power Electronics, part number TE90A1802Q01, delivers 90 watts of power with an 18V output and a maximum current of 5A. Designed for ITE (Commercial) applications, it operates within a wide input voltage range of 90 to 264 VAC and features an IEC 320-C18 input connector. The adapter conforms to Level VI efficiency and CoC Tier 2 standards, ensuring energy efficiency with a low no-load power consumption of 150mW maximum.

The unit has a compact form factor, measuring 153.0mm x 68.0mm x 34.5mm, and is housed in a box package. It utilizes a positive center barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) and requires a separate input cord. The operating temperature range is from -20°C to 70°C. Approval is granted by CE, making it suitable for international utilization.

TE90A1802Q01 Quick Information

Product Type: AC/DC Desktop Adapter

Series: TE90 (90W)

Canonical Name: SL Power Electronics TE90A1802Q01 AC/DC Desktop Adapter

Subcategory: External/Internal (Off-Board) Power Supplies

TE90A1802Q01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TE90A1802Q01 Features

90W AC/DC desktop power adapter.
18V output voltage at 5A.
Universal 90-264 VAC input.
Level VI efficiency and CE approved.
ITE commercial application suitability.

TE90A1802Q01 Applications

Ideal for commercial ITE equipment.
Suitable for networking and computing devices.
Used in point-of-sale and kiosk systems.
Powers industrial control and automation gear.

TE90A1802Q01 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the TE90A1802Q01 adapter?

The TE90A1802Q01 adapter has an output voltage of 18V and a maximum output current of 5A.

What is the power rating of the TE90A1802Q01 adapter?

The power rating of the TE90A1802Q01 adapter is 90W.

What are the input voltage requirements for the TE90A1802Q01 adapter?

The TE90A1802Q01 adapter accepts an input voltage range of 90 to 264 VAC.

What is the operating temperature range for this adapter?

The operating temperature range for the TE90A1802Q01 adapter is -20°C to 70°C.

What type of output connector does the TE90A1802Q01 adapter use?

The TE90A1802Q01 adapter uses a Barrel Plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 9.5mm.

Does the TE90A1802Q01 adapter comply with RoHS standards?

Yes, the TE90A1802Q01 adapter is RoHS3 Compliant.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	ITE (Commercial)
Approval Agency	CE
Cord Length	1.15m (45.3")
Current	5A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord (Sold Separately)
Input Voltage	90 ~ 264 VAC
No Load Power Consumption	150mW (Max)
Operating Temperature	-20°C ~ 70°C
Output Connector	Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Output Current	5A
Output Voltage	18V
Polarization	Positive Center
Power (Watts)	90 W
Region Utilized	International
SVHC Present	Not Present
Voltage	18V
