| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Width |

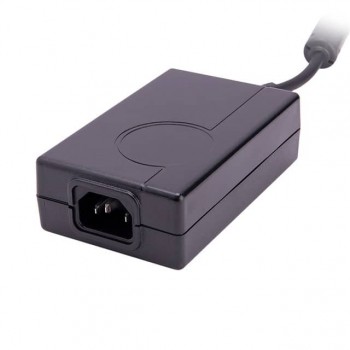

The TE60A4802F01 from SL Power Electronics is a 65W AC/DC desktop adapter designed for ITE (Commercial) applications. It operates with an input voltage range of 90 to 264 VAC and provides a stable output voltage of 48V at a maximum current of 1.35A.
This adapter features Level VI efficiency, ensuring optimal power usage and reduced energy consumption. It is approved by CE, indicating compliance with European safety standards. The unit operates within a temperature range of -20°C to 70°C.
Mechanically, the adapter has dimensions of 108.0mm x 67.9mm x 32.7mm and utilizes an IEC 320-C14 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a cord length of 1.50m. The form factor is a Class I Desktop.
Key specifications include a maximum power output of 65W and a no-load power consumption of 210mW (Max). The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
90 ~ 264 VAC
48V
1.35A
Level VI
-20°C ~ 70°C
Desktop (Class I)
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
