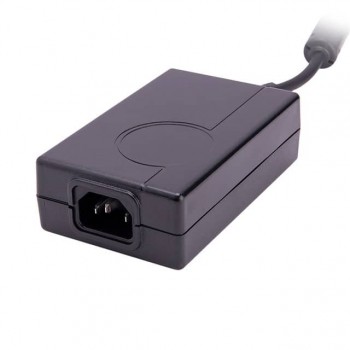

This AC/DC desktop adapter from SL Power Electronics, part number TE60A2402Q01, delivers a 24V output with a maximum current of 2.7A, providing a total power of 65W. It operates within a wide input voltage range of 90-264 VAC and is designed for international use.
The adapter features Level VI efficiency, ensuring optimal power consumption, and is suitable for ITE (Commercial) applications. It includes a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and an IEC 320-C18 input connector, with the input cord sold separately.
With a compact form factor (108.0mm x 67.9mm x 32.7mm), this Class II desktop adapter operates within an ambient temperature range of -20°C to 70°C. It has achieved CE approval, indicating compliance with relevant European standards. The adapter is supplied in bulk packaging.
The input voltage range is 90 to 264 VAC.
Output is 24V at 2.7A.
The power rating is 65W.
The efficiency is Level VI.
It uses an IEC 320-C18 input connector.
The output connector is a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.
The operating temperature range is -20°C to 70°C.
