| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

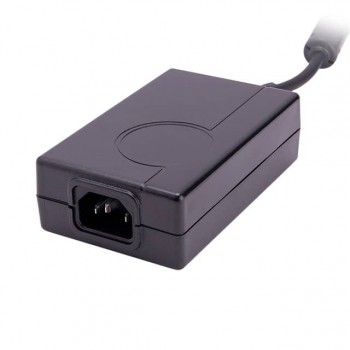

The TE60A2402N01 from SL Power Electronics is a versatile AC/DC desktop adapter designed for commercial ITE applications. This unit delivers a stable 24V output at a maximum current of 2.7A, providing a total power of 65W. It operates efficiently, meeting the Level VI energy efficiency standard, and features a low no-load power consumption of 210mW.
The adapter accepts a wide input voltage range of 90 to 264 VAC, making it suitable for international use. It is equipped with an IEC 320-C8 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). The dimensions are 108.0mm x 67.9mm x 32.7mm, and it includes a 1.50m cord.
Compliance is certified by CE, and the unit is RoHS3 compliant and has an MSL rating of 1. Its compact desktop form factor (Class II) and robust specifications make it a reliable power solution for various electronic devices.
The TE60A2402N01 provides an output voltage of 24V and a maximum output current of 2.7A.
The power rating of the TE60A2402N01 is 65W.
The TE60A2402N01 accepts an input voltage range of 90 to 264 VAC.
The operating temperature range for the TE60A2402N01 is -20°C to 70°C.
Yes, the TE60A2402N01 is RoHS3 Compliant.
