| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

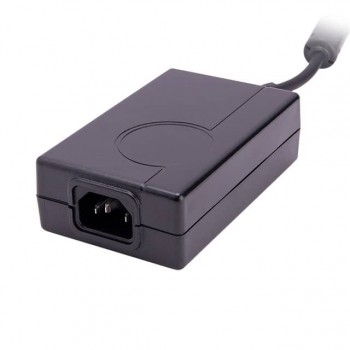

This AC/DC desktop adapter from SL Power Electronics, part number TE60A0902Q01, delivers a 9V output at a maximum current of 6A, providing 54W of power. Designed for ITE (Commercial) applications, it operates within a wide input voltage range of 90-264 VAC and features Level VI efficiency.
The adapter has a compact form factor, measuring 108.0mm x 67.9mm x 32.7mm, and utilizes a standard IEC 320-C8 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a 1.14m cord. It is designed for desktop use and is Class II rated.
Environmental considerations include RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The operating temperature range is from -20°C to 70°C, ensuring reliable performance in various conditions. The adapter is approved by CE for safety and regulatory compliance.
The TE60A0902Q01 adapter provides a 9V output at a maximum current of 6A.
The power rating of the TE60A0902Q01 adapter is 54W.
The TE60A0902Q01 adapter meets Level VI efficiency standards.
The adapter operates within a temperature range of -20°C to 70°C.
The dimensions of the adapter are 108.0mm x 67.9mm x 32.7mm.
The adapter uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The adapter is listed as RoHS3 Compliant.
