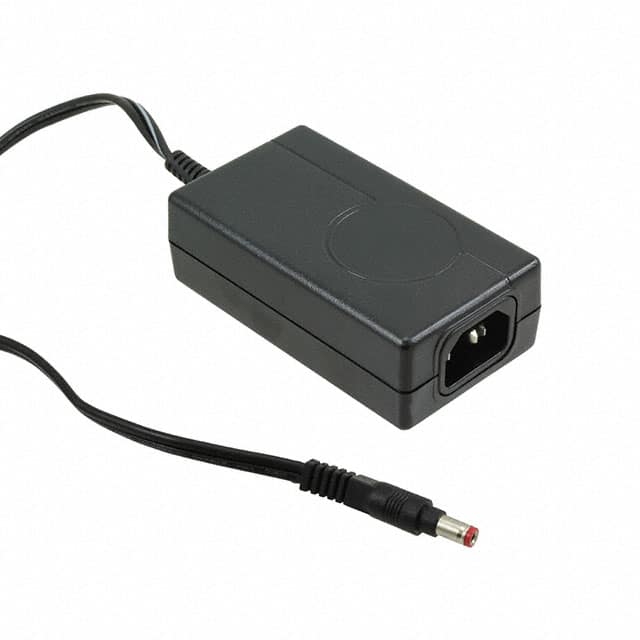

The SL Power Electronics TE30A4803F01 is a versatile AC/DC desktop power adapter designed for ITE applications. It delivers up to 30W of continuous output power with a 48V output voltage.
The adapter accepts a universal input voltage range of 90 to 264 VAC, making it suitable for international use. It features a compact form factor with dimensions of 95.5mm x 54.0mm x 31.0mm and an IEC 320-C14 input connector. The output is provided via a 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center.
Key features include DoE Efficiency Level VI compliance, ensuring energy efficiency, and overvoltage, overtemperature, overload, and short-circuit protection for reliable operation. The unit is approved to CSA/IEC/EN/UL62368-1 safety standards and meets EN55022/CISPR22 and FCC Part 15.109 Class B emissions standards.
With a Mean Time Between Failures (MTBF) of over 1,000,000 hours and an E-Cap life exceeding 8 years, this power adapter is built for durability and long service life in industrial environments.
The output voltage is 48V.
The maximum output power is 30W.
The input voltage range is 90 to 264 VAC.
Yes, it meets DoE Efficiency Level VI requirements.
It has a Barrel Plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions.
The operating temperature range is -20°C to 40°C.
It is approved to CSA/IEC/EN/UL62368-1 safety standards.
