| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage |

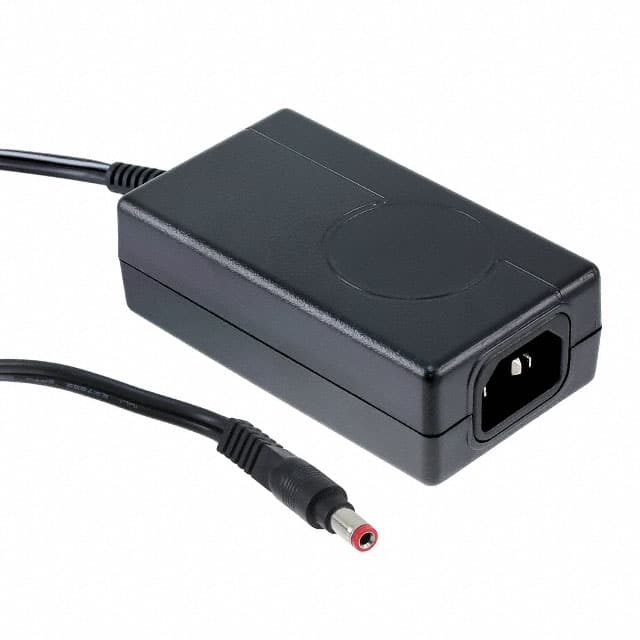

The SL Power TE30A1203F01 is a versatile AC-DC desktop power adapter designed for ITE applications. It delivers up to 30W of power with a stable 12V output, suitable for various commercial needs.
This adapter features a universal input range of 90 to 264 VAC, making it ideal for international use. It complies with DoE Efficiency Level VI requirements, ensuring energy efficiency. The unit includes comprehensive protection features such as overvoltage, overtemperature, overload, and short-circuit protection.
Constructed in a compact desktop form factor (Class I), it measures 95.5mm x 54.0mm x 31.0mm. The output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center. Safety approvals include CB, CE, DEMKO, and UL, meeting standards like IEC/UL62368-1.
Key specifications include a maximum input current of 1.2A at 115 VAC, an inrush current of 40A max, and an earth leakage current below 500 μA. The adapter boasts a high MTBF of over 1,000,000 hours and an estimated E-Cap life exceeding 8 years.
The TE30A1203F01 adapter provides up to 30W of continuous output power.
The adapter has a single output voltage of 12V.
The adapter accepts a universal input voltage range of 90 to 264 VAC.
Yes, it meets DoE Efficiency Level VI requirements.
The operating temperature range is from -20°C to 40°C.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 9.5mm size.
It is approved to CSA/IEC/EN/UL62368-1 standards.
