| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage |

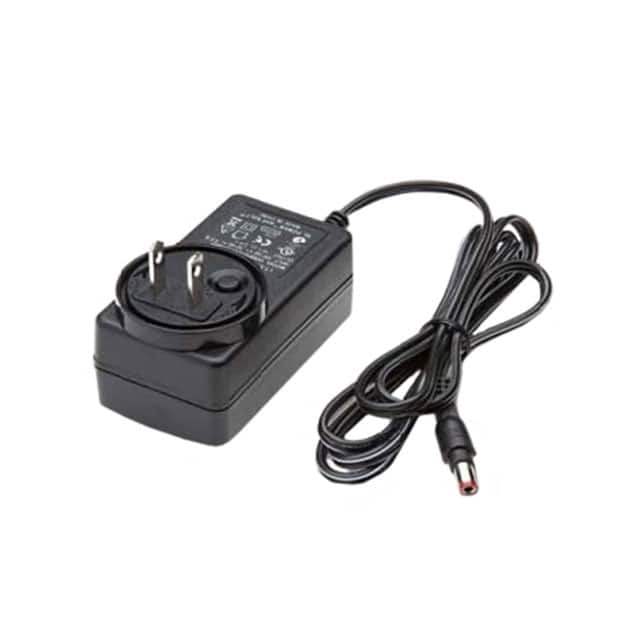

The SL Power Electronics TE30A0503C01 is a compact AC/DC external power adapter designed for ITE (Commercial) applications. It delivers a 5V output with a continuous power rating of 20W.
This wall mount adapter accepts a universal input voltage range of 90 to 264 VAC, making it suitable for various regions. It features a NEMA 1-15P input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The cord length is 4.7 feet (1.45m).
Key electrical specifications include DoE Efficiency Level VI compliance and a low no-load power consumption of 100mW maximum. The adapter incorporates overvoltage, overtemperature, overload, and short-circuit protection with auto-recovery features. It is safety certified to CSA/IEC/EN/UL62368-1 standards and meets EN55022/CISPR22 and FCC Part 15.109 Class B emissions requirements.
The unit has an IP22 rated enclosure and operates within a temperature range of -20°C to 40°C. Its dimensions are 96.0mm x 55.0mm x 33.6mm. The TE30A0503C01 is RoHS3 compliant and has an MSL of 1.
The output voltage is 5V.
The maximum power output is 20W.
The input voltage range is 90 to 264 VAC.
Yes, it meets DoE Efficiency Level VI requirements.
It has a barrel plug connector with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions.
The operating temperature range is -20°C to 40°C.
Yes, it is RoHS3 Compliant.
