| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage |

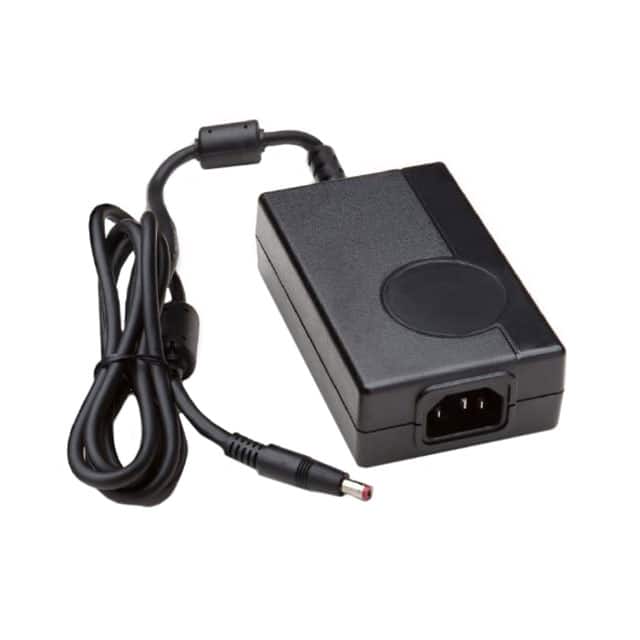

The SL Power TE30A0502F01 is a versatile 20W AC/DC desktop power adapter designed for ITE applications. It accepts a universal input voltage range of 90 to 264 VAC, making it suitable for international use.
Key electrical specifications include a 5V output voltage and a maximum output power of 20W. The adapter meets DoE Efficiency Level VI requirements and features a low no-load input power consumption. It is equipped with an IEC 320-C14 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.).
This power adapter offers robust protection features including overvoltage, overload, short circuit, and overtemperature protection with auto-recovery. It operates within a temperature range of -20°C to 40°C and has an MTBF exceeding 1,000,000 hours. The compact dimensions are 95.5mm x 54.0mm x 31.0mm.
90 to 264 VAC.
5V output, 20W.
-20°C to 40°C.
CSA/IEC/EN/UL62368-1.
IEC 320-C14.
Overload (130-180%), overvoltage, short circuit, and overtemperature protection (hiccup mode, auto-recovery).
Level VI; no-load power consumption <100mW.
