| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Turn On Time | |
| Voltage | |
| Width |

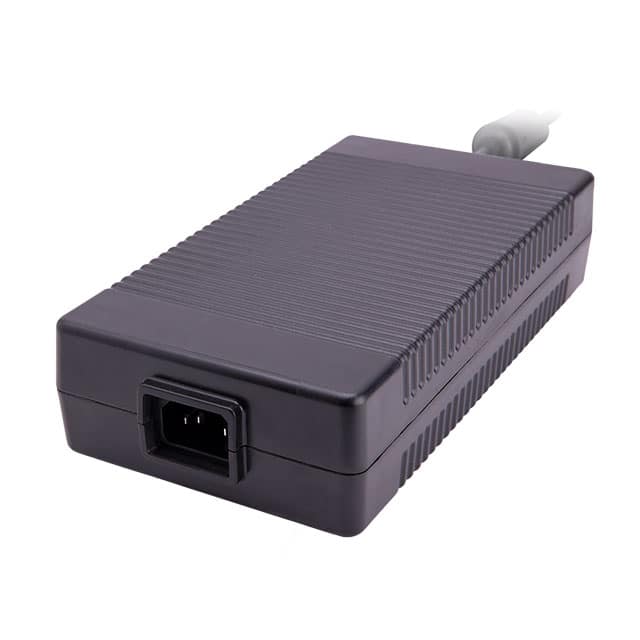

The SL Power Electronics TE240A2451F01 is part of the TE240 series of AC-DC external power adapters, delivering up to 240 Watts of output power. This desktop adapter features a universal input range of 90 to 264 VAC, making it suitable for international applications.
Key electrical specifications include a 24V output voltage and Level VI efficiency compliance. The adapter is designed with comprehensive protection features, including overvoltage, overtemperature, overload, and short-circuit protection, all with auto-recovery or hiccup mode.
Mechanical features include an IP22 rated enclosure and an IEC 320-C14 input connector. The dimensions are 214.0mm x 108.0mm x 47.0mm. Safety approvals include CSA/IEC/EN/UL62368-1.
This power adapter is designed for ITE (Commercial) applications and offers reliability with an MTBF of over 250,000 hours and an E-Cap life exceeding 7 years.
The TE240A2451F01 adapter provides up to 240 Watts of continuous output power.
The adapter accepts a universal input voltage range of 90 to 264 VAC.
Yes, it meets US DoE Efficiency Level VI average efficiency levels and surpasses DoE Efficiency Level VI requirements for no-load power consumption.
The adapter is approved to CSA/IEC/EN/UL62368-1 safety standards.
The operating temperature range is -20°C to 70°C.
It uses an IEC 320-C14 input connector.
The dimensions are 214.0mm in length, 108.0mm in width, and 47.0mm in height.
