| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage | |
| Width |

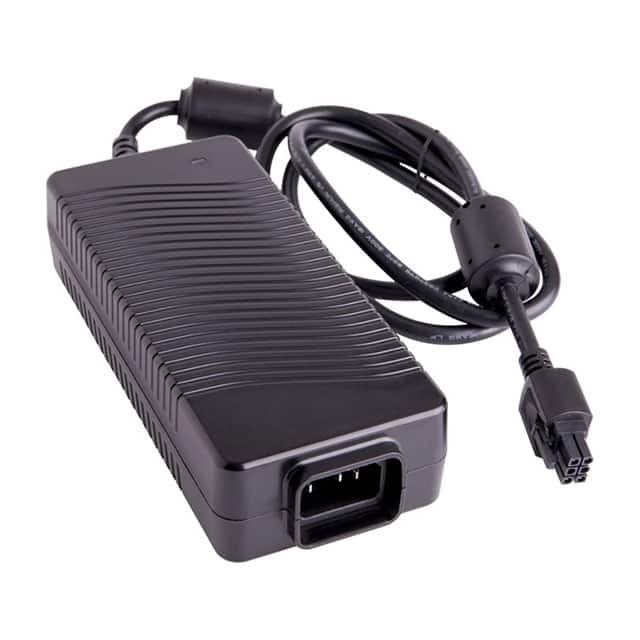

The SL Power Electronics TE150A1251F01 is a 150-watt single-output external power adapter designed for industrial applications. It accepts a universal input voltage range of 90 to 264 VAC and provides a stable 12V output.
This adapter features a compact desktop form factor (6.85" x 2.83" x 1.50") and an IP22 rated enclosure. It is designed with safety and efficiency in mind, meeting DoE Efficiency Level VI and EU CoC Version 5, Tier 2 requirements for average efficiency and low no-load power consumption (<0.15W). The unit includes comprehensive protection features such as overvoltage, overtemperature, overload, and short-circuit protection.
Compliance includes CE, cULus, and D-Mark approvals, along with meeting EN55015/CISPR15, CISPR22, CISPR32, and FCC Part 15.109 Class B emissions standards. It also meets "Heavy Industrial" EMC requirements. The adapter is suitable for ITE (Commercial) applications and operates within a temperature range of -20°C to 70°C.
90-264 VAC at 47-63 Hz.
150W at 12V output (12.5A).
Level VI and CoC Tier 2.
Overload (130-180% hiccup), overvoltage (115-130% latching), short circuit (hiccup), and overtemperature (auto-recovery).
-20°C to 70°C.
174.0mm x 71.9mm x 38.1mm (6.85" x 2.83" x 1.50").
CE, cULus, D-Mark, certified to CSA/IEC/EN/UL62368-1.
