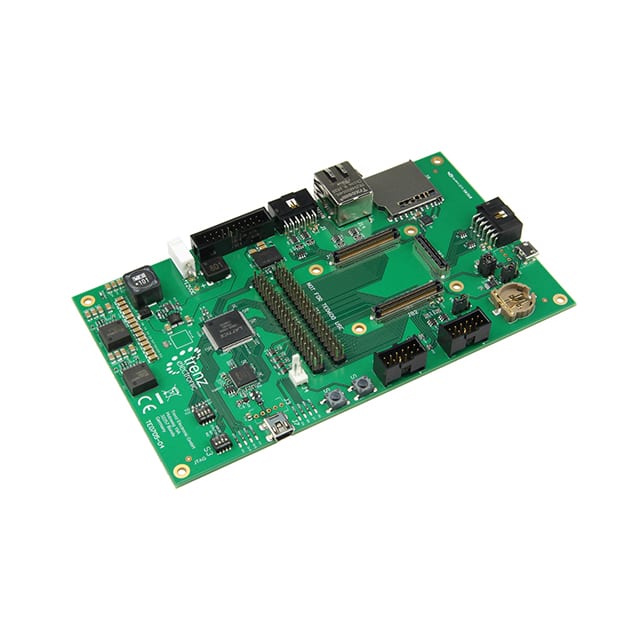

TE0705-04 TE0705-04 is an FPGA carrier board by Trenz Electronic, designed for use with 4x5 System-on-Modules. Contents include board(s).
Mfr Part #:

TE0705-04

Available from 1 distributors
Mfr Name: Trenz Electronic
Trenz Electronic
TE0705-04 is an FPGA carrier board by Trenz Electronic, designed for use with 4x5 System-on-Modules. Contents include board(s).
✓ Total Stock: 2 pcs
$ Price Range: $219.00

TE0705-04 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TE0705-04 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contents
For Use With
Platform
Type
View Similar Products (0)

TE0705-04 Description

Short technical summary and product information.

The TE0705-04 is an FPGA carrier board from Trenz Electronic, part of the TE0705 carrier platform. It is designed to interface with 4x5 System-on-Modules (SoMs), providing a base for FPGA development. The board includes a Micro SD card socket, dual-channel USB to UART/FIFO interface, and USB connectivity. It is supplied as a single board. The carrier board is listed as RoHS3 compliant and REACH unaffected, with MSL 1 unlimited (unverified). It is suitable for evaluation and prototyping of 7-series FPGA designs. Detailed documentation is available in the TE0705 Technical Reference Manual.

TE0705-04 Quick Information

Product Type: FPGA Carrier Board
Canonical Name: TE0705-04 FPGA Carrier Board for 4x5 SoM
Subcategory: Evaluation Board

TE0705-04 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

TE0705-04 Estimated Pricing

Qty Low High
1+ $219.00 $219.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

TE0705-04 Features

  • Designed for 4x5 System-on-Modules.
  • Includes Micro SD card socket.
  • Dual-channel USB to UART/FIFO interface.
  • USB connectivity for programming.
  • Supplied as single board.

TE0705-04 Applications

  • Ideal for FPGA prototyping and evaluation.
  • Used with 7-series FPGA SoMs.
  • Suitable for embedded system development.
  • Enables USB and serial communication.

TE0705-04 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of board is the TE0705-04?

It is an FPGA carrier board.

What platform is the TE0705-04 part of?

It is part of the TE0705 Carrier platform.

What modules is the TE0705-04 designed for?

It is designed for 4x5 System-on-Modules (SoMs).

What is included in the package?

The package includes board(s).

Is the TE0705-04 RoHS compliant?

It is listed as RoHS3 compliant, but this is unverified.

What interfaces does the TE0705-04 have?

It includes a Micro SD card socket, dual-channel USB to UART/FIFO, and USB interface.

What is the DigiKey part number for the TE0705-04?

The DigiKey part number is 1686-1078-ND.
