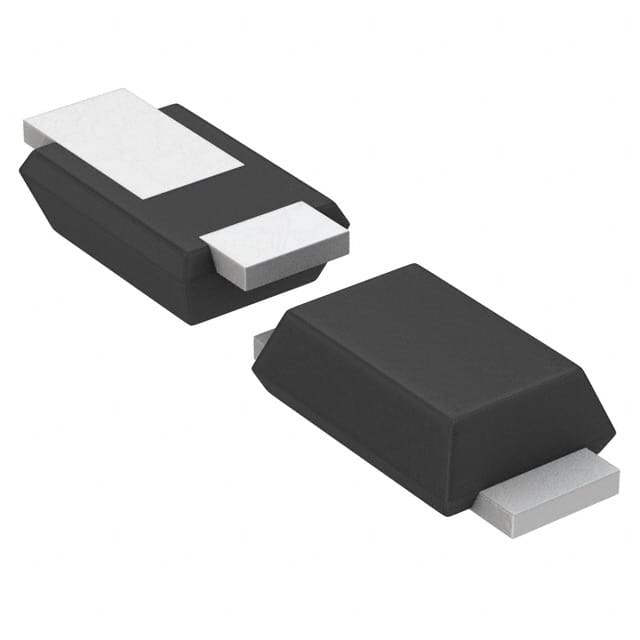

TDZTR5.6 Zener diode with 5.6V nominal voltage and 500mW power dissipation. Surface mount in TUMD2 package.
Mfr Part #:

TDZTR5.6

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
Zener diode with 5.6V nominal voltage and 500mW power dissipation. Surface mount in TUMD2 package.
✓ Total Stock: 3,177 pcs
$ Price Range: $0.13 - $0.14

TDZTR5.6 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,639 pcs
On Request
2639 pcs On Request 1 On Request On Request 1037+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
538 pcs
On Request
538 pcs On Request 1 On Request On Request 1051 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDZTR5.6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

TDZTR5.6 Description

Short technical summary and product information.

The TDZTR5.6 is a Zener diode from ROHM Semiconductor with a nominal Zener voltage of 5.6V and a power dissipation rating of 500mW. It offers a tolerance of ±10% and a reverse leakage current of 10 µA at 2.5V.



Designed for voltage regulation and protection applications, this diode operates over a wide temperature range from -55°C to 150°C. Its surface mount design with a 2-SMD, flat lead package (TUMD2) enables compact board assembly.



The TUMD2 package is suitable for automated assembly processes. The device is RoHS3 compliant and has an MSL of 1 (unlimited floor life).

TDZTR5.6 Quick Information

Product Type: Zener Diode
Series: TDZ
Canonical Name: Zener Diode 5.6V 500mW Surface Mount TUMD2
Subcategory: Single Zener Diode

TDZTR5.6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDZTR5.6 Estimated Pricing

Qty Low High
3,000+ $0.14 $0.14
6,000+ $0.13 $0.13
9,000+ $0.13 $0.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDZTR5.6 Features

  • 5.6V nominal Zener voltage with ±10% tolerance.
  • 500mW power dissipation rating.
  • Surface mount TUMD2 package with flat leads.
  • Wide operating temperature range -55°C to 150°C.
  • Low reverse leakage current of 10µA at 2.5V.

TDZTR5.6 Applications

  • Voltage regulation in low-power circuits.
  • Overvoltage protection in portable devices.
  • Reference voltage generation in analog circuits.
  • Clamping in signal conditioning circuits.

TDZTR5.6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the TDZTR5.6?

The nominal Zener voltage is 5.6V.

What is the power dissipation rating?

500mW.

What is the tolerance of the Zener voltage?

±10%.

What is the reverse leakage current?

10 µA at 2.5V.

What is the operating temperature range?

-55°C to 150°C.

What package is the TDZTR5.6 available in?

Surface mount TUMD2 package (2-SMD, flat lead).

Is the TDZTR5.6 RoHS compliant?

It is marked as RoHS3 compliant, but this claim is unverified.
