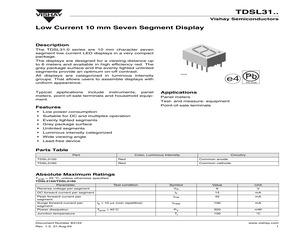

TDSL-3150 The Telefunken TDSL-3150 is a 10mm low current LED display designed for clear visibility. It features a red color and common anode circuitry.
Mfr Part #:

TDSL-3150

Available from 1 distributors
Mfr Name: Telefunken
Telefunken
The Telefunken TDSL-3150 is a 10mm low current LED display designed for clear visibility. It features a red color and common anode circuitry.
✓ Total Stock: 893 pcs
$ Price Range: $2.16

TDSL-3150 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
893 pcs
On Request
893 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDSL-3150 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Common Pin
Junction Temperature
Operating Temperature
Power Dissipation
Reverse Voltage
Storage Temperature
Wavelength
View Similar Products (0)

TDSL-3150 Description

Short technical summary and product information.

The Telefunken TDSL-3150 is a 10mm character seven-segment low current LED display. It is designed for a viewing distance of up to 6 meters and is available in high efficiency red. The display features a grey package surface and untinted segments for optimum on-off contrast.



Key electrical specifications include a typical forward voltage of 1.8V at 2mA and a typical wavelength of 612nm. The angle of half intensity is ±50°, providing a wide viewing angle. The display is suitable for both DC and multiplex operation.



This display is housed in a compact 10-DIP package with a standard package quantity of 400. Typical applications include panel meters, test and measurement equipment, and point-of-sale terminals.

TDSL-3150 Quick Information

Product Type: 7-Segment Display
Series: TDSL31
Canonical Name: Telefunken TDSL3150 10 mm Low Current 7-Segment LED Display
Subcategory: 7-Segment Display

TDSL-3150 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDSL-3150 Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDSL-3150 Features

  • 10mm character seven-segment low current display.
  • High efficiency red color.
  • Typical forward voltage of 1.8V.
  • Wide viewing angle of ±50°.
  • Suitable for DC and multiplex operation.

TDSL-3150 Applications

  • Ideal for panel meters.
  • Used in test and measurement equipment.
  • Suitable for point-of-sale terminals.
  • Applicable in household equipment.

TDSL-3150 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the TDSL-3150 display?

The typical forward voltage is 1.8V at 2mA.

What is the typical luminous intensity of the TDSL-3150 display?

The typical luminous intensity is 260μcd at 2mA.

What is the viewing distance for the TDSL-3150 display?

The display is designed for a viewing distance up to 6m.

What is the character height of the TDSL-3150 display?

The character height is 10mm.

What is the operating temperature range for the TDSL-3150 display?

The operating temperature range is -40°C to +85°C.

What is the package type for the TDSL-3150 display?

The package type is 10-DIP (0.300", 7.62mm).
