| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Voltage | |
| Width |

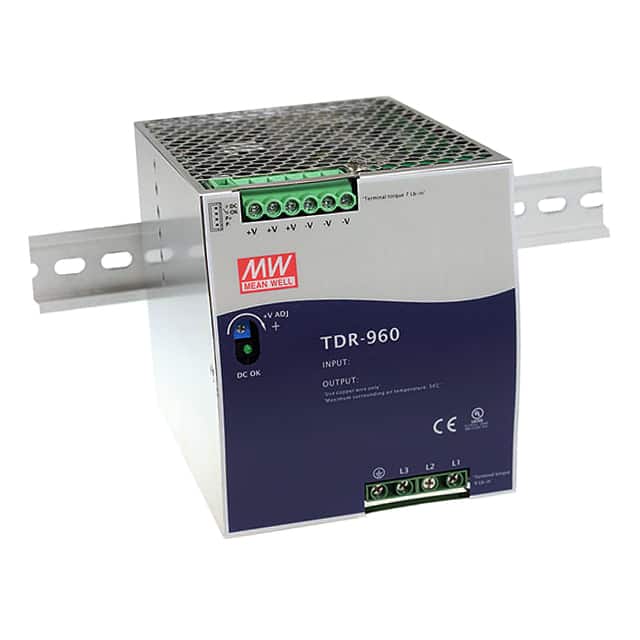

The TDR-960-24 from Mean Well USA is a high-efficiency AC/DC power supply designed for DIN Rail mounting. It delivers a nominal output of 24V at 40A, providing up to 960W of power. The unit accepts a wide three-phase AC input range of 340 to 550 VAC or a DC input of 480V.
Key features include an efficiency of 94%, adjustable output, and Power Factor Correction (PFC) for improved power quality. The input-to-output isolation voltage is rated at 3kV. The operating temperature range is -30°C to 70°C with derating.
The TDR-960-24 is approved by CB, CE, and cULus, making it suitable for industrial and ITE (commercial) applications. The unit's dimensions are 150.0mm x 110.0mm x 125.2mm, and it is designed for DIN Rail mounting. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $266.00 | $266.00 |
| 6+ | $253.40 | $253.40 |
| 12+ | $242.20 | $242.20 |
| 24+ | $235.20 | $235.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDR-960-24 accepts a three-phase AC input of 340 to 550 VAC or a DC input of 480V.
The power supply measures 150.0mm x 110.0mm x 125.2mm and is designed for DIN Rail mounting.
The operating temperature range is -30°C to 70°C with derating.
Yes, the part is listed as RoHS3 compliant and REACH unaffected. However, compliance is unverified.
The TDR-960-24 provides a single output of 24V at 40A, with a total power of 960W.
The power supply achieves up to 94% efficiency.
The isolation voltage between input and output is 3kV.
