| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Voltage | |
| Width |

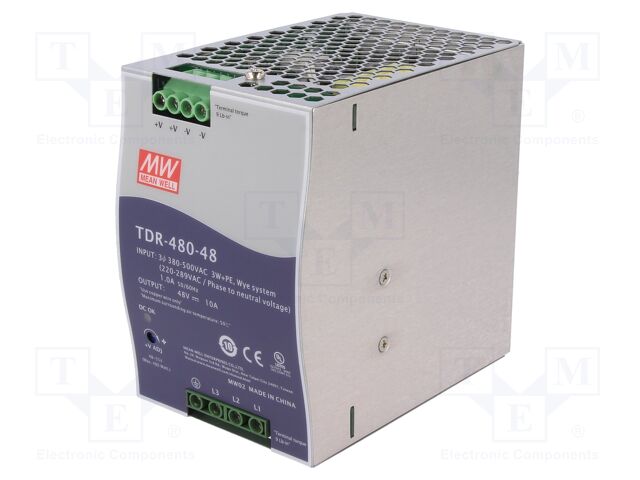

The Mean Well USA TDR-480-48 is an industrial AC/DC DIN Rail power supply that provides a nominal 48V output at 10A, delivering 480W of continuous power. It accepts a three-phase AC input voltage range of 340 to 550 VAC, making it suitable for global industrial installations. With a typical efficiency of 93%, the supply minimizes energy loss and heat generation.
The unit includes an adjustable output and power factor correction (PFC) for improved power quality. It offers 3 kV input-to-output isolation and operates over a temperature range of -30°C to 70°C with derating. The supply is designed for DIN Rail mounting and measures 128.5mm x 85.5mm x 125.2mm.
Typical applications include industrial automation, ITE (commercial) equipment, and factory floor power distribution. The TDR-480-48 carries approvals from CB, CE, and cULus, ensuring compliance with international safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $132.10 | $132.10 |
| 5+ | $125.80 | $125.80 |
| 8+ | $120.20 | $120.20 |
| 24+ | $116.80 | $116.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 VDC.
DIN Rail.
-30°C to 70°C with derating.
Yes, it is listed as RoHS3 Compliant (unverified).
340 to 550 VAC, 3-phase.
93% typical.
CB, CE, cULus.
