The Texas Instruments TDP142IRNQT is a specialized interface IC functioning as a DisplayPort linear redriver. It complies with the VESA DisplayPort standard Version 1.4 and supports a 1-4 lane Main Link interface signaling up to HBR3, which is 8.1 Gbps per lane. This device is position independent, allowing placement within sources, cables, or sinks to enhance the overall link budget by compensating for losses.
The TDP142IRNQT offers several levels of receive linear equalization, up to 14 dB, to mitigate inter-symbol interference (ISI) caused by cable and board trace losses. It operates on a single 3.3V supply and is transparent to DisplayPort link training. Configuration can be managed through GPIO or I2C, and it is hot-plug capable.

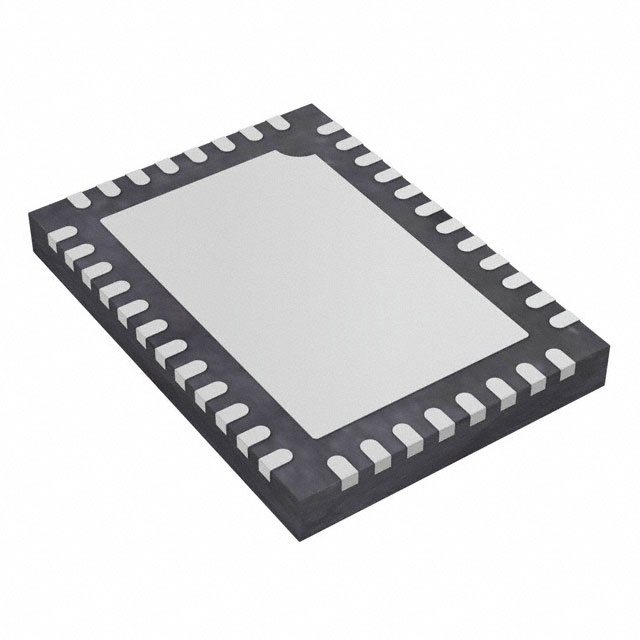

This redriver is housed in a compact 4 mm x 6 mm, 0.4 mm pitch WQFN package, suitable for applications with limited space. It features an industrial temperature range of -40°C to 85°C, making it suitable for demanding environments. The device is designed for applications such as personal computers, CAD/CAM/CAE workstations, point-of-sale terminals, and audio/visual devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.01 | $3.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDP142IRNQT supports a data rate of up to 8.1 Gbps.
The TDP142IRNQT supports the DisplayPort interface.
The TDP142IRNQT operates on a supply voltage of 3.3V.
The TDP142IRNQT has an operating temperature range of -40°C to 85°C.
The TDP142IRNQT is supplied in a 40-WQFN (RNQ) package.
