| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

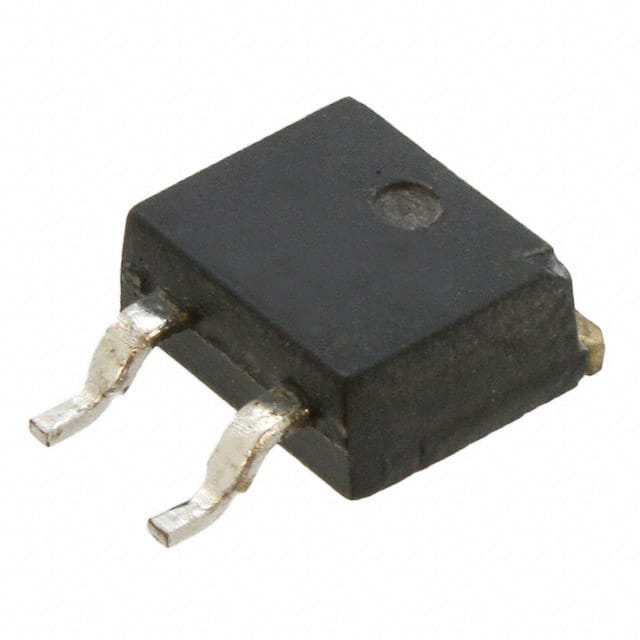

The Ohmite TDH35P5R00J is a 35 Watt thick film power resistor designed for surface mount applications. It features a TO-263 D2PAK package, providing environmental protection with a molded case.
This resistor offers a resistance value of 5 Ohms with a tolerance of ±5%. Its operating temperature range is -55°C to 150°C, and it has a temperature coefficient of ±100ppm/°C. The component is moisture resistant.
Key electrical specifications include a maximum operating voltage of 350V and an insulation resistance of 10GΩ minimum. The thermal resistance to a cooling plate is less than 4.28 °K/W. The resistor element is electrically insulated from the metal sink tab.
With dimensions of 10.10mm L x 9.60mm W x 4.70mm H, the TDH35P5R00J is suitable for various power applications where reliable performance and heat dissipation are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5 Ohms.
The power rating is 35W.
The operating temperature range is -55°C to 150°C.
The temperature coefficient is ±100ppm/°C.
It is supplied in a TO-263-3, D²Pak (2 Leads + Tab), TO-263AB package.
