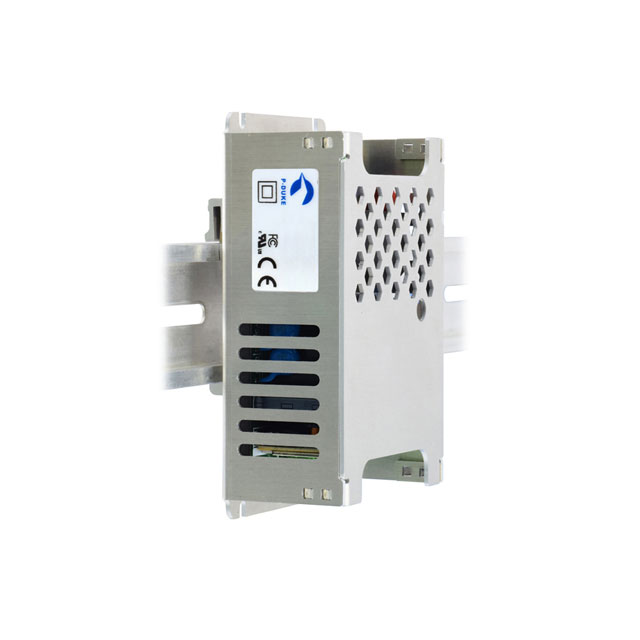

TDD65US48C-P The P-DUKE Technology, Inc. TDD65US48C-P is an enclosed AC/DC converter with a 65W power output and 1.36A current rating. It features DIN rail mounting and universal input.
Mfr Part #:

TDD65US48C-P

Mfr Name: P-DUKE Technology, Inc.
P-DUKE Technology, Inc.
The P-DUKE Technology, Inc. TDD65US48C-P is an enclosed AC/DC converter with a 65W power output and 1.36A current rating. It features DIN rail mounting and universal input.
Stock on Request

TDD65US48C-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width
View Similar Products (0)

TDD65US48C-P Description

Short technical summary and product information.

The TDD65US48C-P from P-DUKE Technology, Inc. is an enclosed AC/DC converter designed for industrial applications. It delivers a power output of 65W with a current rating of 1.36A and features a universal input capability.



This converter is designed for easy integration, featuring DIN rail mounting. Its dimensions are 93.2mm in length, 60.2mm in width, and 33.3mm in height. The operating temperature range is -40°C to 85°C with derating.



Key electrical specifications include an efficiency of 93% and a single output. It also offers features such as adjustable output, DC input capability, and a standby output. The unit has undergone testing and meets standards such as 62368-1 and is approved by agencies including CB, CE, cURus, FCC, and UL.

TDD65US48C-P Quick Information

Product Type: AC/DC Converter
Canonical Name: P-DUKE Technology, Inc. TDD65US48C-P AC/DC Converter
Subcategory: AC/DC Converters

TDD65US48C-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDD65US48C-P Features

  • Enclosed AC/DC converter with 65W power.
  • 1.36A output current rating.
  • DIN rail mounting for easy integration.
  • Wide operating temperature range.
  • High efficiency at 93%.

TDD65US48C-P Applications

  • Suitable for ITE commercial applications.
  • Designed for industrial power supply needs.
  • Features adjustable and standby outputs.
  • Supports DC input capability.

TDD65US48C-P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of this converter?

The converter is enclosed and designed for DIN Rail mounting.

What is the operating temperature range?

-40°C to 85°C with derating.

What is the efficiency rating?

93%.

What is the output current?

1.36 A.

What is the isolation voltage?

3 kV.

What safety approvals does it have?

CB, CE, cURus, FCC, and UL.

Does it have adjustable output?

Yes, the output is adjustable.
