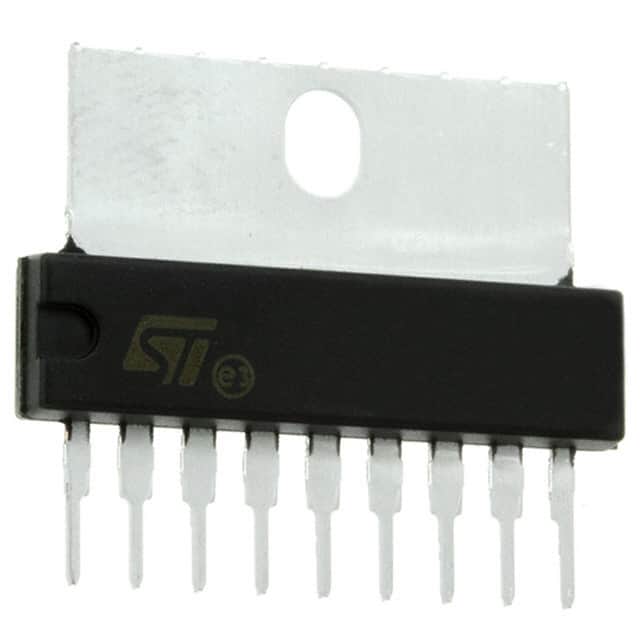

TDA8133 The STMicroelectronics TDA8133 is a dual positive voltage regulator providing fixed 5.1V and 8V outputs. It features through-hole mounting and supports output currents up to 750 mA.
Mfr Part #:

TDA8133

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics TDA8133 is a dual positive voltage regulator providing fixed 5.1V and 8V outputs. It features through-hole mounting and supports output currents up to 750 mA.
✓ Total Stock: 15 pcs
$ Price Range: $23.40

TDA8133 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDA8133 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

TDA8133 Description

Short technical summary and product information.

The TDA8133 from STMicroelectronics is a monolithic dual positive voltage regulator designed for applications requiring fixed output voltages of 5.1V and 8.0V. It can supply currents up to 750 mA for each output.



Key electrical specifications include an input voltage range of 7V to 18V and a low dropout voltage. The regulator incorporates protection features such as over-temperature and short-circuit protection for enhanced reliability. Output 1 includes a reset function, while Output 2 can be disabled via a TTL input.



This component is housed in a 9-SIP (Single In-line Package) and is designed for through-hole mounting. The operating temperature range is from 0°C to 150°C, making it suitable for various industrial environments.

TDA8133 Quick Information

Product Type: Voltage Regulator
Canonical Name: TDA8133 Dual Positive Voltage Regulator
Subcategory: Dual Output

TDA8133 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDA8133 Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDA8133 Features

  • Dual 5.1V and 8V fixed outputs.
  • Up to 750 mA output current.
  • Input voltage range 7V to 18V.
  • Over-temperature and short-circuit protection.
  • Through-hole mounting in 9-SIP package.

TDA8133 Applications

  • Provides stable dual voltage rails.
  • Suitable for various power supply designs.
  • Features reset and disable functions.
  • Robust protection for reliable operation.

TDA8133 FAQs

6 frequently asked questions generated from this part’s specifications.
What are the output voltages for the TDA8133?

The TDA8133 provides two fixed output voltages: 5.1V for Output 1 and 8V for Output 2.

What is the maximum output current for the TDA8133?

The TDA8133 can supply output currents up to 750 mA.

What is the input voltage range for the TDA8133?

The input voltage range for the TDA8133 is 7V to 18V.

What protection features are included in the TDA8133?

The TDA8133 includes over-temperature and short-circuit protection.

How is the TDA8133 mounted?

The TDA8133 is mounted using the through-hole method.

What is the operating temperature range of the TDA8133?

The TDA8133 operates within a temperature range of 0°C to 150°C.
