| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The STMicroelectronics TDA7348D is a digitally controlled audio processor designed for audio systems. It features a flexible input multiplexer supporting three stereo and one mono input, with selectable gain for optimal adaptation to various sources.
Key functionalities include volume control in precise 0.3dB steps with up to 20dB gain, zero crossing mute, direct mute, and a programmable pause detector. The device also incorporates soft mute capabilities, controllable via software or a hardware PIN. For audio output, it provides four independent speaker attenuators, allowing for balance and fader adjustments in 1.25dB steps, along with independent mute functions.
This audio processor operates over a voltage range of 6V to 10.2V and functions within an extended temperature range of -40°C to 85°C. It is housed in a 28-SOIC surface mount package and communicates via an I²C interface, making it suitable for integration into various audio system designs.
The TDA7348D utilizes BIPOLAR/CMOS technology to achieve very low distortion and noise. Its signal processing employs CMOS-switching techniques for high linearity. This processor is an upgrade to the TDA7318, incorporating enhanced features like soft mute and zero-crossing mute.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 6V to 10.2V.
The operating temperature range is -40°C to 85°C.

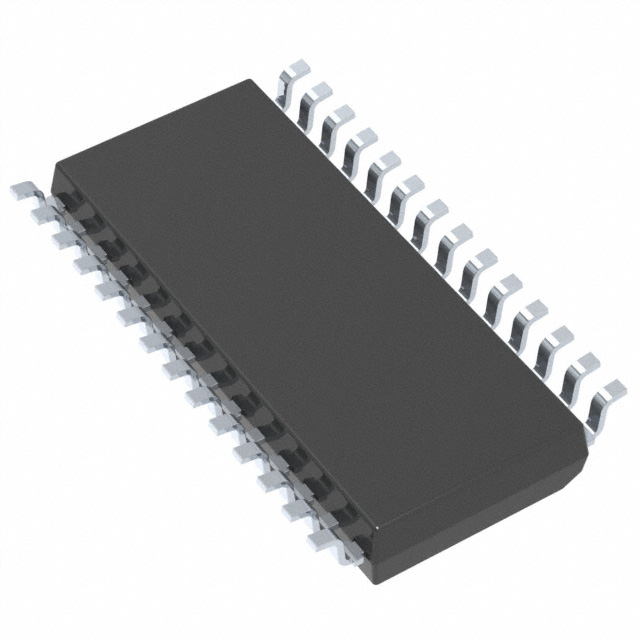

The TDA7348D is available in a 28-SOIC (0.295", 7.50mm Width) surface mount package.
The TDA7348D is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The TDA7348D uses an I²C interface.
The TDA7348D offers input multiplexing, volume control, bass/treble control, speaker attenuation, mute functions, and a pause detector.
