| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Connector | |
| Applications | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| Modulation or Protocol | |
| Mounting Type | |
| Operating Temperature | |
| Sensitivity | |
| Supplier Device Package | |
| Voltage |
The TDA5211 from Infineon Technologies is a highly integrated, very low power consumption single-chip FSK/ASK Superheterodyne Receiver (SHR). It is designed for the frequency band of 310 to 350 MHz and is pin-compatible with the ASK Receiver TDA5201.
Key electrical specifications include an operating voltage range of 4.5V to 5.5V, a sensitivity of -113dBm, and a maximum data rate of 100kbps. The device consumes between 4.2mA and 6.5mA during operation. It supports both ASK and FSK modulation protocols.
This receiver is suitable for applications such as alarm systems, communication systems, and remote control systems. It operates within a temperature range of -40°C to 105°C.

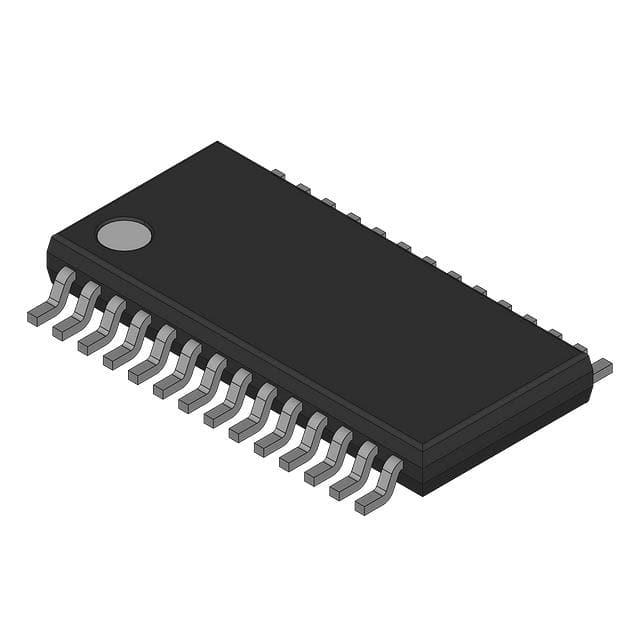

The TDA5211 is available in a 28-TSSOP package and is designed for surface mount applications. The supplier device package is identified as PG-TSSOP-28, with an antenna connector suitable for PCB surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDA5211 operates in the frequency band of 310MHz to 350MHz.
The sensitivity of the TDA5211 is -113dBm.
The maximum data rate supported by the TDA5211 is 100kbps.
The TDA5211 operates within a voltage range of 4.5V to 5.5V.
The TDA5211 can operate in temperatures from -40°C to 105°C.
The TDA5211 is supplied in a 28-TSSOP package.
The TDA5211 is designed for surface mount installation.
