| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
86,095 pcs
|
86095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,250 pcs
|
3250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,990 pcs
|
1990 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Tape & Reel |

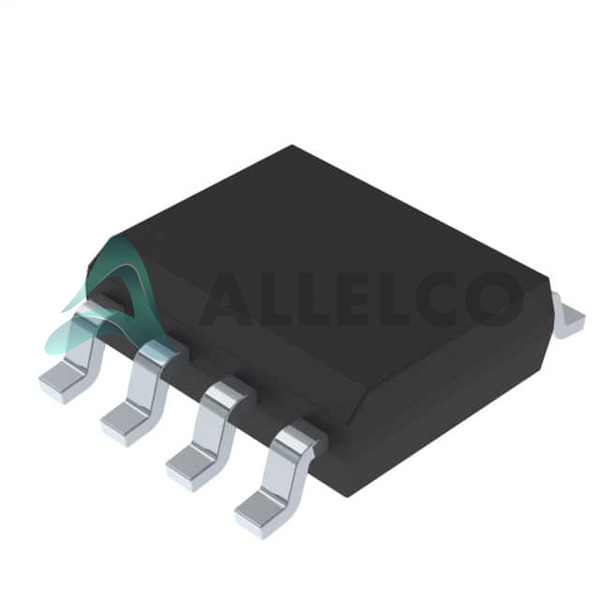

The TDA2822D from STMicroelectronics is a versatile Class AB audio amplifier IC suitable for both mono and stereo configurations. It is housed in a standard 8-SOIC surface-mount package, facilitating easy integration into various electronic designs.
This amplifier operates efficiently across a wide supply voltage range, from 1.8V to 15V. It offers significant output power capabilities, delivering up to 1W into a 32 Ohm load in mono mode or 380mW per channel into an 8 Ohm load in stereo mode. The device is designed for audio amplification tasks, providing a reliable solution for sound reproduction systems.
Key electrical characteristics include its Class AB amplification type and a broad operating temperature range from -40°C to 150°C. The surface-mount package type ensures compatibility with automated assembly processes. The TDA2822D is a component within the broader category of audio amplifiers, offering a balance of performance and power efficiency for consumer electronics and other audio applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDA2822D can deliver up to 1W into a 32 Ohm load in mono mode or 380mW per channel into an 8 Ohm load in stereo mode.
The TDA2822D operates with a supply voltage ranging from 1.8V to 15V.
The TDA2822D can operate within a temperature range of -40°C to 150°C.
The TDA2822D is available in an 8-SOIC package.
The TDA2822D is designed for surface mount installation.
Common issues include overheating if heat dissipation is insufficient or load is too high, distortion from high input signals or unstable supply voltage, and potential issues from improper wiring or PCB layout.
