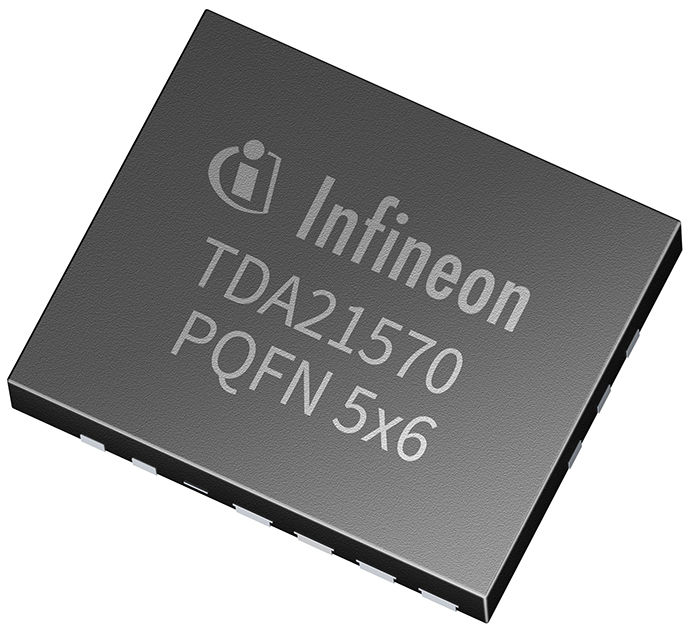

The Infineon TDA21570 is a high-frequency, low-profile integrated power stage designed for DC-DC converters and voltage regulation in applications such as CPUs, GPUs, and DDR memory arrays. It incorporates a low quiescent current synchronous buck gate-driver IC co-packed with control and synchronous MOSFETs.
Key electrical specifications include an input voltage range of 4.25 V to 16 V and a VCC/VDRV supply range of 4.25 V to 5.5 V. The device can deliver an output current of up to 70 A with an output voltage range from 0.225 V to 5.5 V. It operates at switching frequencies up to 1.5 MHz, enabling high performance transient response and allowing for miniaturization of passive components.
The TDA21570 features on-chip MOSFET current sensing with high accuracy. Protection features include over-temperature protection (OTP), cycle-by-cycle over-current protection (OCP), and control MOSFET short detection (HSS). It also includes VDRV and bootstrap under-voltage protection.
Packaged in a compact 5 mm x 6 mm x 0.9 mm PQFN, the TDA21570 is optimized for PCB layout and heat transfer. It is RoHS compliant and designed for surface mount applications.
The input voltage range is 4.25 V to 16 V.
The TDA21570 has an output current capability of 70 A.
The operating temperature range is -40 °C to 125 °C.
The TDA21570 is available in a 5 mm x 6 mm x 0.9 mm PQFN package.
Yes, the TDA21570 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
