TDA21472AUMA1

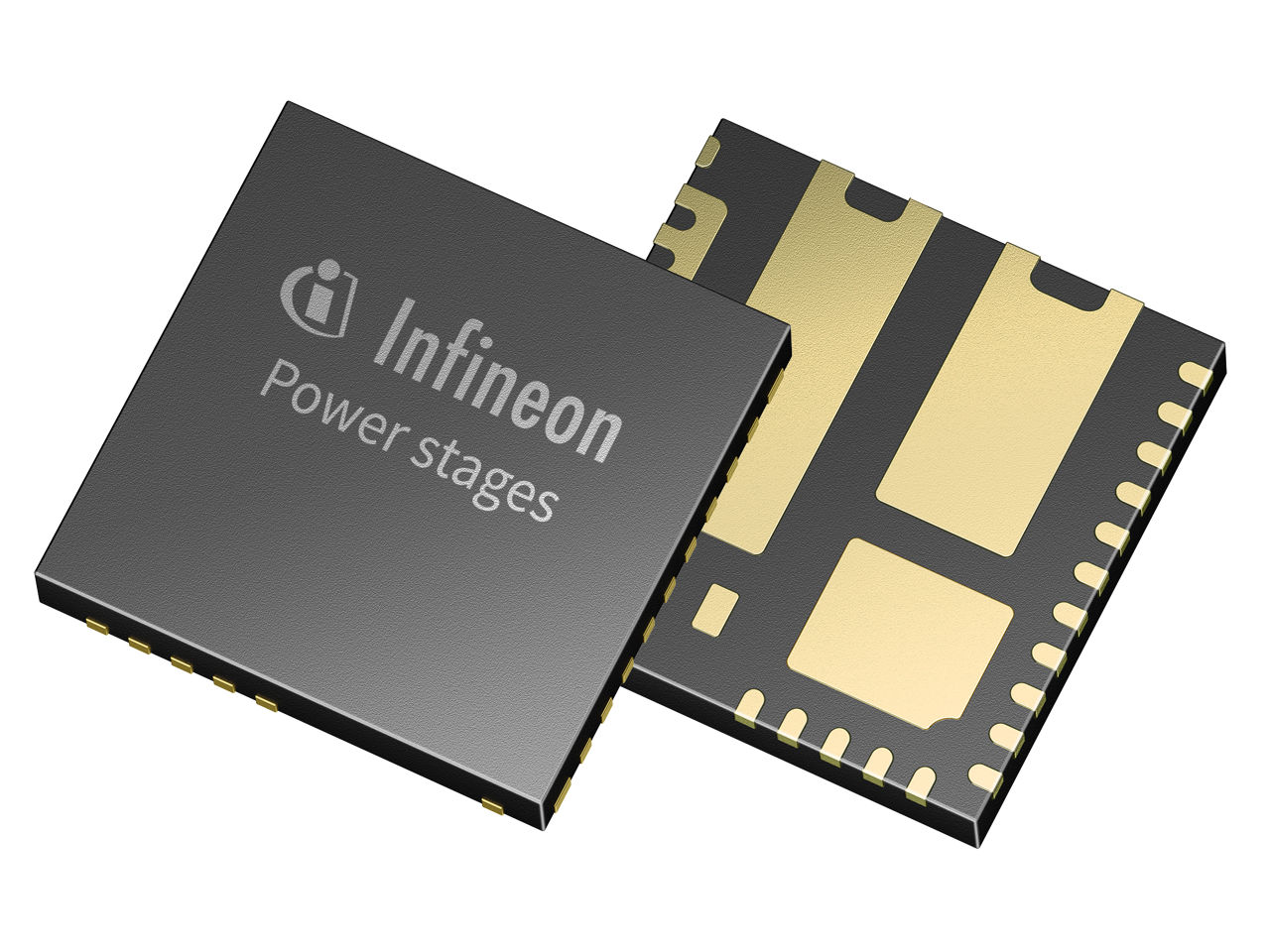

The TDA21472 from Infineon Technologies is an Optimos Powerstage designed for high-frequency, low-profile DC-DC converters, serving as a voltage regulator for CPUs, GPUs, and DDR memory arrays. This power stage integrates a gate-driver IC, Schottky diode, and high-side/low-side MOSFETs within a compact 5 mm x 6 mm x 1 mm PQFN package, optimized for PCB layout and heat transfer.

Key electrical specifications include an input voltage range of 4.25 V to 16 V and a VCC/VDRV supply range of 4.25 V to 5.5 V. The output voltage can be regulated from 0.25 V up to 5.5 V. It features an 80A output over-current protection capability and operates at switching frequencies up to 1.5 MHz, enabling high performance transient response and reduced component size.

Additional features include on-chip MOSFET current sensing with temperature compensation, VCC/VDRV under-voltage lockout (UVLO), phase fault detection, IC temperature reporting, and thermal shutdown. The device also supports auto-replenishment of the bootstrap capacitor and a deep-sleep power saving mode for reduced consumption in PS3/PS4 states. The TDA21472 is optimized for CPU core power delivery in server applications but is also well-suited for GPU and DDR memory designs.

The package is surface mountable and designed for efficient thermal management. The operating temperature range is -40°C to 125°C.
