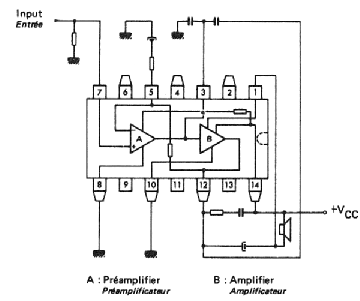

The TDA1045 is an integrated circuit designed by Thomson-CSF, functioning as an AF Power Amplifier. It is housed in a QIP-14 package.
Key electrical specifications include a supply voltage (Vcc) of 9V, a quiescent current (Icc) of 50mA, and a maximum output current (Iout) of 1A. The device can deliver up to 1.3W of output power into an 8Ω load. It features an input resistance (R in) of 50kΩ and a distortion level of 0.3% at 150mW.
The operating temperature range for storage is from -25°C to +125°C. The power dissipation (Ptot) is rated at 550mW. The physical dimensions of the IC, including pins, are 18 x 7 x 8 mm, with a weight of 1g.
This component is suitable for various audio frequency amplification applications where its power output and voltage requirements are met.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDA1045 operates with a supply voltage of 9V.
The TDA1045 can deliver a maximum output power of 1.3W into an 8Ω load.
The TDA1045 is supplied in a QIP-14 package.
The TDA1045 has a storage temperature range of -25°C to +125°C.
