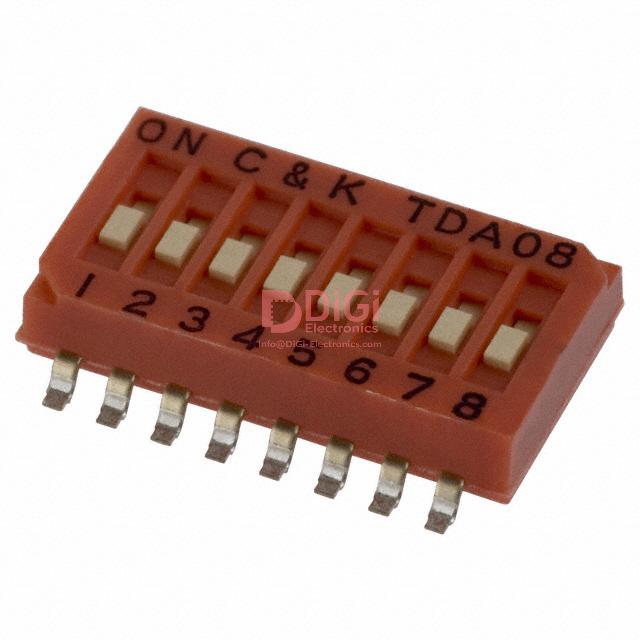

TDA08H0SK1R The C&K TDA08H0SK1R is an 8-position SPST slide DIP switch designed for surface mounting. It features a 25mA current rating and a 24VDC voltage rating.
Mfr Part #:

TDA08H0SK1R

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K TDA08H0SK1R is an 8-position SPST slide DIP switch designed for surface mounting. It features a 25mA current rating and a 24VDC voltage rating.
✓ Total Stock: 773 pcs
$ Price Range: $0.75

TDA08H0SK1R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
773 pcs
On Request
773 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDA08H0SK1R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Body Material
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Lead Spacing
Lead Style
Length
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

TDA08H0SK1R Description

Short technical summary and product information.

The C&K TDA08H0SK1R is a slide-action DIP switch with a Single Pole Single Throw (SPST) circuit configuration. It offers 8 distinct positions for versatile control.



This surface-mount switch is designed with gull wing termination style for reliable connections. It operates within a temperature range of -20°C to 85°C and has a current rating of 25mA at a voltage rating of 24VDC. The contact finish is gold, and the body is constructed from Polyphthalamide (PPA).



Key features include a tape seal for protection and a washable design. The height above the board is 0.091 inches (2.30mm), and the pitch is 0.050 inches (1.27mm). The actuator level is flush and recessed, providing flexibility in design integration.

TDA08H0SK1R Quick Information

Product Type: DIP Switch
Series: TDA
Canonical Name: C&K TDA08H0SK1R SPST Slide DIP Switch
Subcategory: Slide DIP Switch

TDA08H0SK1R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDA08H0SK1R Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDA08H0SK1R Features

  • 8-position SPST slide DIP switch.
  • Surface mount with gull wing termination.
  • Rated for 25mA at 24VDC.
  • Operates from -20°C to 85°C.
  • Features tape seal and washable design.

TDA08H0SK1R Applications

  • Ideal for board-level configuration settings.
  • Used in electronic test equipment.
  • Suitable for industrial control systems.
  • Applicable in telecommunications hardware.

TDA08H0SK1R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the TDA08H0SK1R DIP switch?

The TDA08H0SK1R DIP switch has an SPST circuit type.

How many positions does the TDA08H0SK1R DIP switch have?

The TDA08H0SK1R DIP switch has 8 positions.

What is the current rating for the TDA08H0SK1R DIP switch?

The TDA08H0SK1R DIP switch has a current rating of 25mA.

What is the voltage rating of the TDA08H0SK1R DIP switch?

The TDA08H0SK1R DIP switch has a voltage rating of 24VDC.

What is the operating temperature range for the TDA08H0SK1R DIP switch?

The TDA08H0SK1R DIP switch operates within a temperature range of -20°C to 85°C.

What type of actuator does the TDA08H0SK1R DIP switch use?

The TDA08H0SK1R DIP switch uses a standard slide actuator.

What is the mounting type for the TDA08H0SK1R DIP switch?

The TDA08H0SK1R DIP switch is designed for surface mounting.
