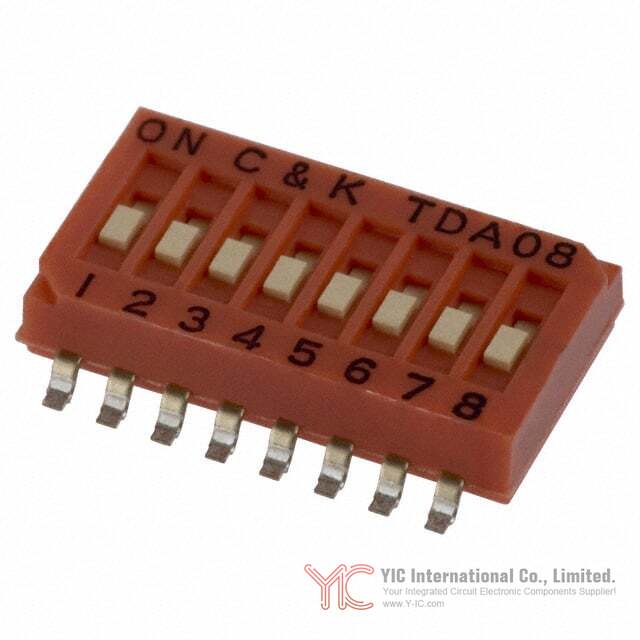

TDA08H0SK1 The C&K Components TDA08H0SK1 is an 8-position SPST DIP switch designed for surface mounting. It features a 25mA current rating and a 24VDC voltage rating.
Mfr Part #:

TDA08H0SK1

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components TDA08H0SK1 is an 8-position SPST DIP switch designed for surface mounting. It features a 25mA current rating and a 24VDC voltage rating.
✓ Total Stock: 14 pcs
$ Price Range: $0.75

TDA08H0SK1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDA08H0SK1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

TDA08H0SK1 Description

Short technical summary and product information.

The C&K Components TDA08H0SK1 is a slide-action DIP switch with 8 positions and a Single Pole Single Throw (SPST) circuit configuration. Designed for surface mounting with a gull wing termination style, this switch operates at a current rating of 25mA and a voltage rating of 24VDC.



It features a pitch of 1.27mm and a height above board of 2.30mm. The contact finish is gold over a copper alloy contact material. The operating temperature range is from -20°C to 85°C. This switch is also noted as being washable and features tape seal functionality.



This component is suitable for various electronic applications requiring manual switch input. Its surface mount design and tape seal feature facilitate automated assembly processes.

TDA08H0SK1 Quick Information

Product Type: DIP Switch
Canonical Name: TDA08H0SK1 DIP Switch
Subcategory: DIP Switch

TDA08H0SK1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDA08H0SK1 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDA08H0SK1 Features

  • 8-position SPST DIP switch.
  • Surface mount with gull wing termination.
  • Rated for 25mA at 24VDC.
  • Gold-plated copper alloy contacts.
  • Operates from -20°C to 85°C.

TDA08H0SK1 Applications

  • Ideal for board-level configuration settings.
  • Suitable for automated assembly processes.
  • Used in electronic device control panels.
  • Provides manual input for embedded systems.

TDA08H0SK1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating for the TDA08H0SK1 DIP switch?

The current rating is 25mA.

What is the voltage rating for the TDA08H0SK1?

The voltage rating is 24VDC.

What is the operating temperature range for the TDA08H0SK1?

The operating temperature range is -20°C to 85°C.

How many positions does the TDA08H0SK1 DIP switch have?

The TDA08H0SK1 has 8 positions.

What type of circuit does the TDA08H0SK1 switch offer?

It offers a Single Pole Single Throw (SPST) circuit.

What is the mounting type for the TDA08H0SK1?

The mounting type is Surface Mount.
