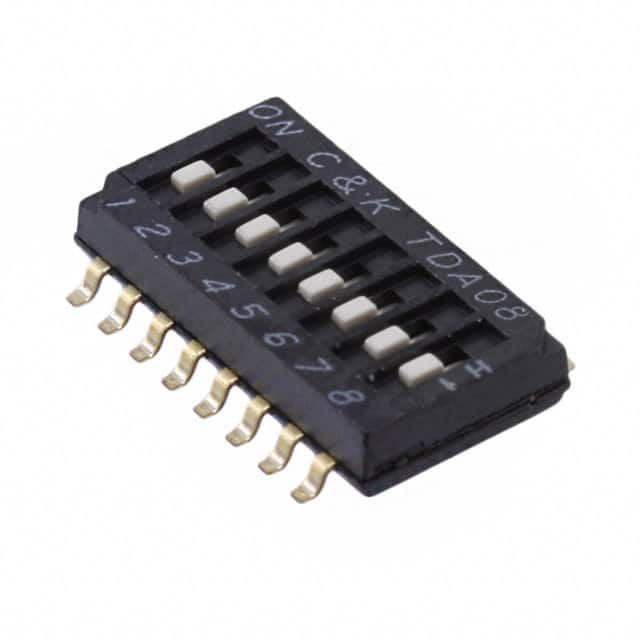

TDA08H0SB1R The C&K Components TDA08H0SB1R is an ultra-miniature surface mount DIP switch with a tape seal. It features SPST circuitry and 8 positions.
Mfr Part #:

TDA08H0SB1R

Available from 3 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components TDA08H0SB1R is an ultra-miniature surface mount DIP switch with a tape seal. It features SPST circuitry and 8 positions.
✓ Total Stock: 4,466 pcs
$ Price Range: $0.75

TDA08H0SB1R Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TDA08H0SB1R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

TDA08H0SB1R Description

Short technical summary and product information.

The C&K Components TDA08H0SB1R is an ultra-miniature, surface mount DIP switch from the TDA series. It offers SPST circuitry across 8 positions, with a contact rating of 25mA at 24VDC for switching and 100mA for steady state.



This switch is designed for increased electrical reliability with a bifurcated contact and is process sealed for surface mount soldering and washable processing. The operating temperature ranges from -40°C to 85°C. The pitch is 1.27mm (0.050"), and the height above the board is 0.091" (2.30mm).



Key materials include PPS for the case and cover, and LCP for the actuator. The contacts are copper alloy with gold plating, and the terminals are copper alloy with gold flash over nickel plate. It features a tape seal made of Polyimide.



Applications for this switch include hand-held electronic devices, portable computers, and various forms of instrumentation and controls.

TDA08H0SB1R Quick Information

Product Type: DIP Switch
Series: TDA
Canonical Name: TDA Series Ultra-miniature Surface Mount Half-pitch DIP Switch
Subcategory: DIP Switch

TDA08H0SB1R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TDA08H0SB1R Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TDA08H0SB1R Features

  • Ultra-miniature surface mount DIP switch.
  • SPST circuitry with 8 positions.
  • 25mA switching current at 24VDC.
  • Process sealed for soldering and washing.
  • Tape seal for enhanced reliability.

TDA08H0SB1R Applications

  • Suitable for handheld electronic device controls.
  • Used in portable computer and instrumentation switches.
  • Ideal for surface-mount control panels.
  • Applicable in washable electronic applications.

TDA08H0SB1R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the TDA08H0SB1R?

The maximum operating voltage is 24VDC.

How many positions does the switch have?

The switch has 8 positions.

What is the contact rating for switching?

The contact rating for switching is 25mA at 24VDC.

What is the mechanical and electrical life of the switch?

The switch has a life of 1,000 cycles.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.
