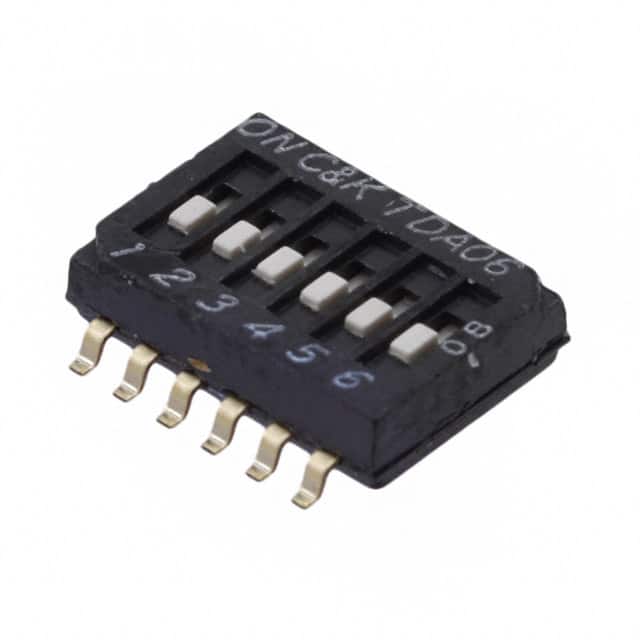

The C&K Components TDA06H0SB1R is an ultra-miniature, surface mount DIP switch from the TDA series. It features a bifurcated contact for increased electrical reliability and is process sealed for surface mount soldering and washable processing.
This switch has an SPST circuit configuration with 6 positions. It is rated for 24VDC and a switching current of 25mA, with a steady state rating of 100mA. The contact finish is gold over nickel, and the contact material is copper alloy. The pitch is 1.27mm (0.050").
Designed for applications in hand-held electronic devices, portable computers, and instrumentation and controls, the TDA06H0SB1R operates within a temperature range of -40°C to 85°C. It features a standard slide actuator and gull wing termination style for surface mounting.
The switch has a mechanical and electrical life of 1,000 cycles. It is specified with a maximum contact resistance of 100mΩ and a minimum insulation resistance of 100MΩ at 100VDC. The dielectric strength is a minimum of 300V AC. The height above the board is 0.091" (2.30mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the TDA06H0SB1R DIP switch is 24VDC.
The TDA06H0SB1R DIP switch has 6 positions.
The operating temperature range for this DIP switch is -40°C to 85°C.
The contact rating is 25mA at 24VDC for switching and 100mA at 50VDC for steady state.
The TDA06H0SB1R DIP switch uses a gull wing termination style.
