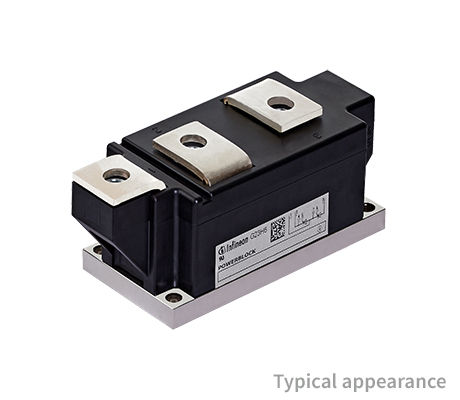

The Infineon TD520N22KOF is a phase control thyristor module utilizing advanced medium power technology (AMPT) and pressure contact technology for high reliability. This module is housed in an industrial standard package with an electrically insulated base plate, making it suitable for various power control applications.
Key electrical characteristics include a repetitive peak forward and reverse off-state voltage (VDRM/VRRM) of 2200V, a maximum RMS on-state current (ITRMSM) of 1050A, and an average on-state current (ITAVM) of 520A at 85°C. It also offers a high surge current capability (ITSM) of 18000A for a 10ms pulse. The module has a typical on-state voltage (VT) of 1.5V at 1500A and a thermal resistance junction to case (RthJC) of 0.055 K/W.
Typical applications for the TD520N22KOF include soft starters, rectifiers for drives and UPS systems, crowbar applications, power controllers, battery chargers, static switches, and bypass switches. The module's design facilitates efficient heat dissipation and robust performance in demanding industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.07 | $103.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak off-state voltage (VDRM/VRRM) for the TD520N22KOF is 2200 V.
The average on-state current (ITAVM) at a case temperature of 85°C is 520 A.
The surge current rating (ITSM) is 18000 A for a 10ms pulse at 25°C, and 14500 A at maximum junction temperature.
The thermal resistance from junction to case (RthJC) is 0.055 K/W.
Typical applications include soft starters, rectifiers for drives and UPS, crowbar applications, power controllers, battery chargers, static switches, and bypass switches.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
