| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,053 pcs
|
12053 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Gate Type | |
| Input Type | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage Supply |
The STMicroelectronics TD350ID is a single-channel, high-side gate driver IC. It is designed to drive IGBTs and N-Channel MOSFETs, operating with a supply voltage range of 12V to 26V. The device features a non-inverting input and provides peak output currents of 1.3A for sourcing and 1.7A for sinking.
With a typical rise and fall time of 100ns, the TD350ID is suitable for applications requiring fast switching. It operates within a temperature range of -40°C to 150°C (TJ). The IC is housed in an 8-DIP package and is designed for through-hole mounting.
This gate driver is part of the Power Management (PMIC) category, specifically within Gate Drivers. Its specifications make it a component for various power control applications where efficient driving of power transistors is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the TD350ID is 12V to 26V.

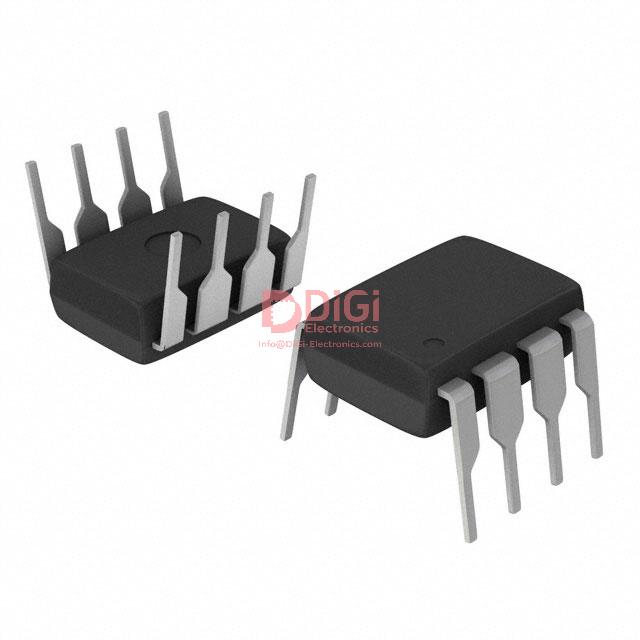

The TD350ID is supplied in an 8-DIP package designed for through-hole mounting.
The TD350ID operates within a temperature range of -40°C to 150°C (TJ).
The RoHS status is RoHS3 Compliant.
