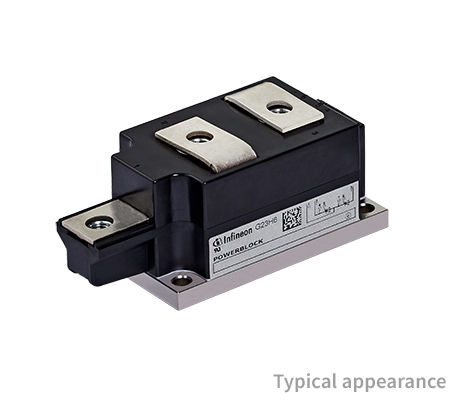

TD260N22KOF The Infineon TD260N22KOF is a phase control thyristor module with a repetitive peak voltage of 2200V and an average on-state current of 260A. It features an industrial standard package and pressure contact technology.
Mfr Part #:

TD260N22KOF

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon TD260N22KOF is a phase control thyristor module with a repetitive peak voltage of 2200V and an average on-state current of 260A. It features an industrial standard package and pressure contact technology.
✓ Total Stock: 6 pcs
$ Price Range: $0.99

TD260N22KOF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TD260N22KOF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Weight
View Similar Products (0)

TD260N22KOF Description

Short technical summary and product information.

The Infineon TD260N22KOF is a high-reliability phase control thyristor module utilizing advanced medium power technology and pressure contact technology. It is housed in an industrial standard package with an electrically insulated base plate.



Key electrical characteristics include a repetitive peak forward and reverse voltage (VDRM/VRRM) of 2200V and an average on-state current (ITAVM) of 260A at 85°C case temperature. The module also offers a high surge current capability (ITSM) of 8000A at Tvj max for 10ms.



Typical applications for the TD260N22KOF include soft starters, rectifiers for drive applications, crowbar applications, power controllers, rectifiers for UPS, battery chargers, and static switches. Its robust design and high power handling capabilities make it suitable for demanding industrial environments.

TD260N22KOF Quick Information

Product Type: Thyristor Module
Canonical Name: Phase Control Thyristor Module
Subcategory: Phase Control Thyristor

TD260N22KOF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TD260N22KOF Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

TD260N22KOF Features

  • 2200V repetitive peak voltage rating.
  • 260A average on-state current.
  • High surge current capability.
  • Industrial standard package.
  • Electrically insulated base plate.

TD260N22KOF Applications

  • Used in soft starters.
  • Suitable for rectifier applications.
  • Applied in crowbar circuits.
  • Power controller applications.
  • Used in UPS systems.

TD260N22KOF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak forward and reverse voltage for the TD260N22KOF?

The maximum repetitive peak forward and reverse voltage (VDRM/VRRM) is 2200 V.

What is the average on-state current of the TD260N22KOF at 85°C?

The average on-state current (ITAVM) is 260 A at a case temperature of 85°C.

What is the surge current capability of the TD260N22KOF?

The surge current capability (ITSM) is 8000 A for a pulse width of 10 ms at maximum junction temperature.

What is the thermal resistance (junction to case) for this thyristor module?

The thermal resistance from junction to case (RthJC) is typically 0.113 K/W.

What type of package does the TD260N22KOF use?

It uses an industrial standard package with an electrically insulated base plate.
