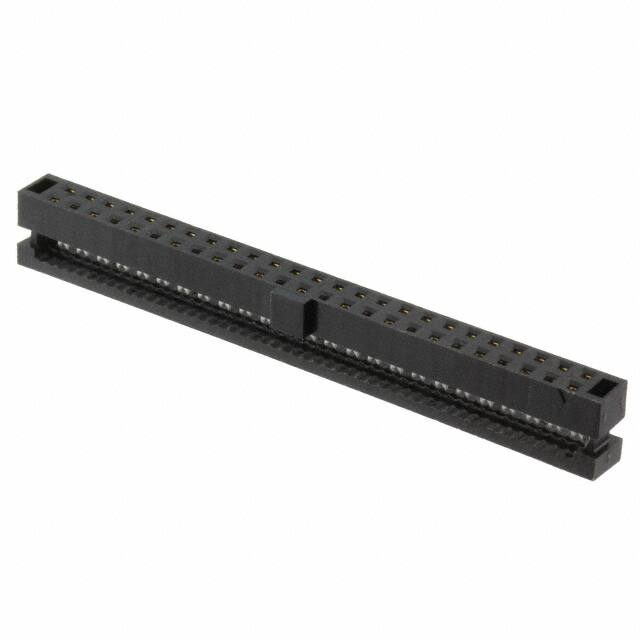

The Samtec TCSD-25-01-N is a 50 position IDC receptacle from the Tiger Eye TCSD series. It features a 2-row configuration with a 2.00mm pitch and gold plated beryllium copper contacts rated for 2.8 A per pin (2 pins powered). The connector accepts 28 AWG ribbon cable and terminates via IDC for fast, reliable mass termination.
This free hanging (in-line) connector uses a push-pull fastening system and includes a polarizing key for correct orientation. The black glass filled polyester insulator provides robust mechanical support and operates from -40 °C to +105 °C. The contact finish thickness is 30.0 µ" (0.76 µm) gold over 50 µ" nickel.
Typical applications include internal wiring of electronic equipment, data communication systems, and industrial control panels where a compact, high-density IDC interconnect is required. The TCSD series mates with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM header strips.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.94 | $8.94 |
| 10+ | $8.10 | $8.10 |
| 50+ | $7.02 | $7.02 |
| 500+ | $6.73 | $6.73 |
| 1,000+ | $5.75 | $5.75 |
| 2,000+ | $5.28 | $5.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions arranged in 2 rows with a 2.00mm pitch.
2.8 A per pin when 2 pins are powered.
28 AWG ribbon cable with a wire diameter of 0.019" to 0.021" (0.48 mm to 0.53 mm).
-40 °C to +105 °C.
Free hanging (in-line) with push-pull fastening.
Gold plating with 30.0 µ" (0.76 µm) thickness over 50 µ" nickel.
Yes, it features a polarizing key for correct orientation.
