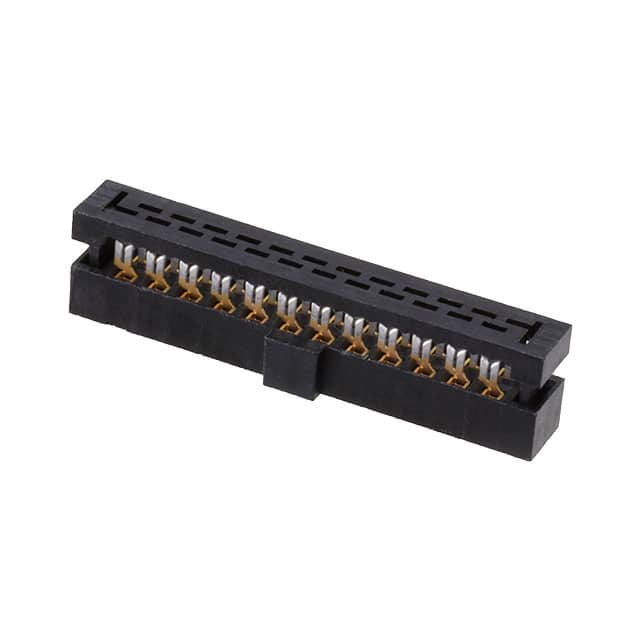

TCSD-12-01-N Samtec TCSD-12-01-N is a 24-position IDC socket cable assembly with 2.00mm pitch, 28 AWG ribbon cable, and gold plated BeCu contacts.
Mfr Part #:

TCSD-12-01-N

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TCSD-12-01-N is a 24-position IDC socket cable assembly with 2.00mm pitch, 28 AWG ribbon cable, and gold plated BeCu contacts.
✓ Total Stock: 8 pcs
$ Price Range: $3.47 - $8.04

TCSD-12-01-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCSD-12-01-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Current Rating
Fastening Type
Features
Halogen Free
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Prop 65
Row Spacing
Tape & Reel
Wire
Wire Gauge
Wire Type
View Similar Products (0)

TCSD-12-01-N Description

Short technical summary and product information.

The Samtec TCSD-12-01-N is a 24-position IDC socket cable assembly from the TCSD series, designed for 2.00mm pitch applications. It features a free hanging (in-line) mounting type with push-pull fastening and a black glass filled polyester insulator.



The connector uses Tiger Eye multi-finger BeCu contacts with 30µin gold plating for reliable performance in demanding environments. It accepts 28 AWG stranded ribbon cable (7/36 tinned copper with gray PVC insulation) via IDC termination. The assembly includes feed through and polarizing key features.



Electrical rating is 2.8 A per pin (2 pins powered) with an operating temperature range of -40°C to +105°C. The part is packaged in tubes of 20 pieces and is RoHS3, REACH, and MSL 1 compliant.

TCSD-12-01-N Quick Information

Product Type: IDC Socket Cable Assembly
Series: TCSD
Canonical Name: Samtec TCSD-12-01-N IDC Socket Cable Assembly, 24 Position, 2.00mm Pitch, 28 AWG, Gold Plating
Subcategory: IDC Socket Cable Assembly

TCSD-12-01-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TCSD-12-01-N Estimated Pricing

Qty Low High
1+ $8.04 $8.04
20+ $5.77 $5.77
100+ $4.81 $4.81
500+ $4.03 $4.03
1,000+ $3.89 $3.89
2,500+ $3.47 $3.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCSD-12-01-N Features

  • 24 position IDC socket with 2.00mm pitch.
  • Gold plated BeCu Tiger Eye contacts.
  • Rated for 2.8 A per pin operation.
  • Free hanging in-line mounting style.
  • RoHS3 and REACH compliant assembly.

TCSD-12-01-N Applications

  • Cable-to-board interconnects in compact electronics.
  • High reliability industrial control systems.
  • Prototyping and test fixture wiring.
  • Data communication and signal routing.

TCSD-12-01-N FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TCSD-12-01-N have?

24 positions arranged in 2 rows.

What is the pitch of this connector?

2.00mm (0.079") pitch with 0.079" row spacing.

What is the current rating of the TCSD-12-01-N?

2.8 A per pin with 2 pins powered.

What mounting type does this connector use?

Free hanging (in-line) with push-pull fastening.

What wire gauge and termination type are supported?

28 AWG ribbon cable with IDC termination.
