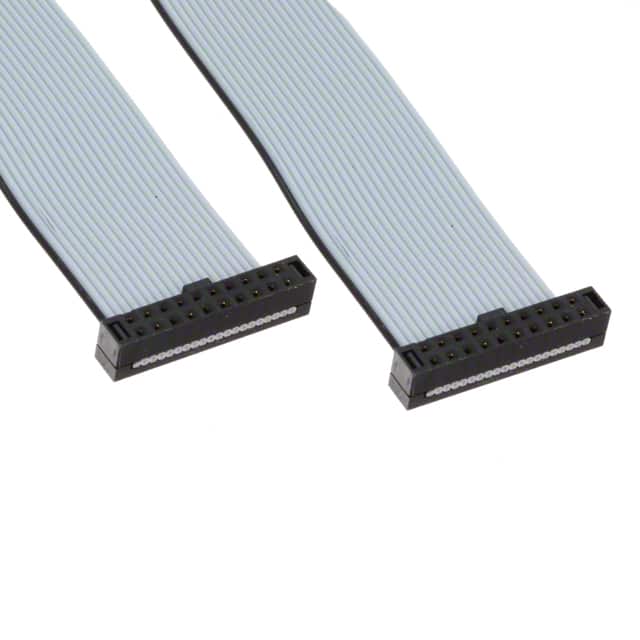

The TCSD-10-D-05.00-01-N is a 20-position, 2-row, 1.00mm pitch socket-to-socket IDC ribbon cable assembly from Samtec. It uses a gray unshielded ribbon cable with a length of 5.00 inches (127.00mm). The cable is terminated via IDC (Insulation Displacement Connection) and features a polarizing key for alignment. Contacts are made of beryllium copper (BeCu) with 30µ" (0.76µm) gold plating over 50µ" nickel. The insulator is black glass filled polyester. The cable is 28 AWG stranded tinned copper with gray PVC insulation. Electrical rating is 2.8A per pin (2 pins powered) and operating temperature range is -40°C to +105°C. This assembly accepts lead sizes from 0.019" to 0.021" and has an insertion depth of 0.113" to 0.125". Mating connectors include Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM (-SR), and ZSTMM series. The assembly is non-standard and non-returnable.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.70 | $11.70 |
| 10+ | $10.81 | $10.81 |
| 25+ | $10.01 | $10.01 |
| 50+ | $9.76 | $9.76 |
| 100+ | $9.08 | $9.08 |
| 500+ | $8.63 | $8.63 |
| 1,000+ | $7.20 | $7.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to +105°C.
It is listed as RoHS3 Compliant, but this is unverified.
1.00mm (0.039").
5.00 inches (127.00mm).
2.8A per pin (2 pins powered).
Gold, 30µ" (0.76µm) thick.
20 positions.
