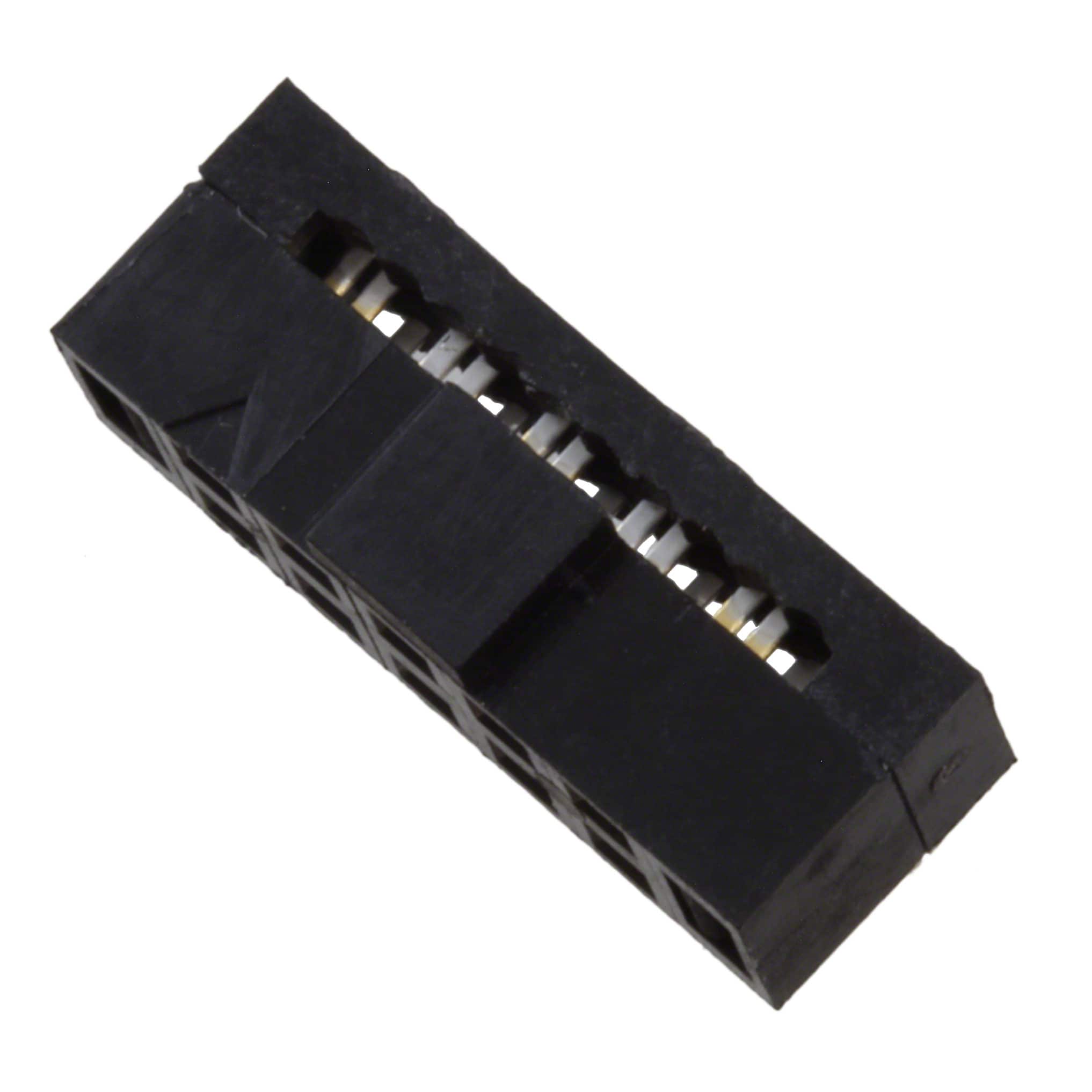

The Samtec TCSD-05-01-N is a Tiger Eye IDC socket strip designed for 10 positions in 2 rows at a 2.00mm pitch. It accepts 28 AWG ribbon cable and terminates via IDC, making it ideal for high-density cable-to-board interconnections. The insulator is molded from black glass-filled polyester, and the contacts are beryllium copper with a 30 microinch gold plating over 50 microinch nickel.
Electrical specifications include a current rating of 2.8 A per pin when two pins are powered, and an operating temperature range of -40°C to +105°C. The connector features a free hanging (in-line) mounting style with push-pull fastening and includes feed through and polarizing key features.
This socket strip mates with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM (-SR), and ZSTMM series headers. The TCSD series assemblies are non-standard and non-returnable. For applications requiring a polarizing key, specify PK-01-07.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.98 | $5.98 |
| 25+ | $5.32 | $5.32 |
| 41+ | $4.40 | $4.40 |
| 82+ | $3.09 | $3.09 |
| 1,025+ | $2.96 | $2.96 |
| 2,501+ | $2.52 | $2.52 |
| 5,002+ | $2.26 | $2.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows.
2.00 mm (0.079 inches).
2.8 A per pin when two pins are powered.
Free Hanging (In-Line).
-40°C to +105°C.
Gold, 30.0 µin (0.76 µm) over 50 µin nickel plating.
28 AWG ribbon cable, with wire size accepted from 0.48 mm to 0.53 mm diameter.
