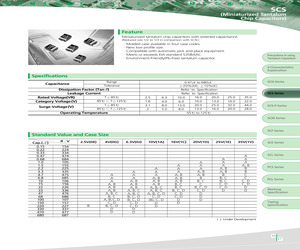

TCSCS1D336KDAR The Samsung Electronics TCSCS1D336KDAR is a solid tantalum capacitor with a capacitance of 33uF and a voltage rating of 20V. It features a low ESR of 0.8 Ohm and is designed for surface mounting.
Mfr Part #:

TCSCS1D336KDAR

Available from 2 distributors
Mfr Name: Samsung Electronics
Samsung Electronics
The Samsung Electronics TCSCS1D336KDAR is a solid tantalum capacitor with a capacitance of 33uF and a voltage rating of 20V. It features a low ESR of 0.8 Ohm and is designed for surface mounting.
✓ Total Stock: 1,108 pcs
$ Price Range: $0.81

TCSCS1D336KDAR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCSCS1D336KDAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Construction
Lead Spacing
Mounting Type
Storage Temperature
Tape & Reel
Termination Style
Tolerance
View Similar Products (0)

TCSCS1D336KDAR Description

Short technical summary and product information.

This Samsung Electronics TCSCS1D336KDAR is a solid tantalum capacitor designed for electronic applications requiring stable performance. It offers a capacitance value of 33uF and a maximum DC voltage rating of 20V.



The capacitor has an equivalent series resistance (ESR) of 0.8 Ohms, contributing to efficient operation. Its operating temperature range is from -55°C to 85°C, with a derated temperature range extending to 125°C. The tolerance for this component is ±10%.



Packaged for surface mounting, the TCSCS1D336KDAR utilizes a 7343-31 case code with a height of 2.8mm. It is supplied on tape and reel, making it suitable for automated assembly processes. The leakage current is specified at 6.6uA, and the dissipation factor (Tan Delta) is 0.08 (8%).

TCSCS1D336KDAR Quick Information

Product Type: Solid Tantalum Capacitor
Series: SCS
Canonical Name: Samsung Electronics TCSCS1D336KDAR Solid Tantalum Capacitor
Subcategory: Tantalum Capacitor

TCSCS1D336KDAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCSCS1D336KDAR Estimated Pricing

Qty Low High
1+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCSCS1D336KDAR Features

  • 33uF capacitance, 20V rated voltage.
  • Low 0.8 Ohm ESR.
  • Wide -55C to 85C operating temperature.
  • Surface mountable, tape and reel packaging.
  • ±10% capacitance tolerance.

TCSCS1D336KDAR Applications

  • Suitable for general purpose filtering.
  • Ideal for power supply decoupling.
  • Used in signal coupling circuits.
  • Applicable in portable electronics.
  • Good for DC blocking applications.

TCSCS1D336KDAR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the TCSCS1D336KDAR capacitor?

The capacitance of the TCSCS1D336KDAR is 33uF.

What is the maximum DC voltage rating for the TCSCS1D336KDAR?

The maximum DC voltage rating for the TCSCS1D336KDAR is 20V.

What is the ESR of the TCSCS1D336KDAR capacitor?

The Equivalent Series Resistance (ESR) of the TCSCS1D336KDAR is 0.8 Ohms.

What is the operating temperature range for this capacitor?

The operating temperature range for the TCSCS1D336KDAR is -55°C to 85°C.

What is the package type for the TCSCS1D336KDAR?

The TCSCS1D336KDAR is a surface mount capacitor in a 7343-31 case code.

How is the TCSCS1D336KDAR capacitor packaged?

The TCSCS1D336KDAR is supplied on tape and reel.
