TCS40DLR.LFT The Toshiba TCS40DLR.LF(T is an omnipolar Hall effect magnetic switch. It operates with a supply voltage of 2.3 to 5.5V and features an open drain output.
Mfr Part #:

TCS40DLR.LFT

Available from 3 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TCS40DLR.LF(T is an omnipolar Hall effect magnetic switch. It operates with a supply voltage of 2.3 to 5.5V and features an open drain output.
✓ Total Stock: 359,182 pcs
$ Price Range: $0.99

TCS40DLR.LFT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
347,692 pcs
On Request
347692 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,600 pcs
On Request
8600 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,890 pcs
On Request
2890 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCS40DLR.LFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Function
Material
Mounting Type
Operating Temperature
Operating Voltage
Output Current
Output Type
Polarization
SVHC Present
Technology
View Similar Products (0)

TCS40DLR.LFT Description

Short technical summary and product information.

The Toshiba TCS40DLR.LF(T is an omnipolar Hall effect magnetic switch designed for various sensing applications. This component utilizes Hall effect technology to detect magnetic fields.



Key electrical characteristics include an operating supply voltage range of 2.3 to 5.5V and a supply current of 1.6 mA. The output stage is open drain, capable of handling up to 5 mA of output current. The sensing range is specified with a trip point of ±4.4 mT and a release point of ±0.9 mT.

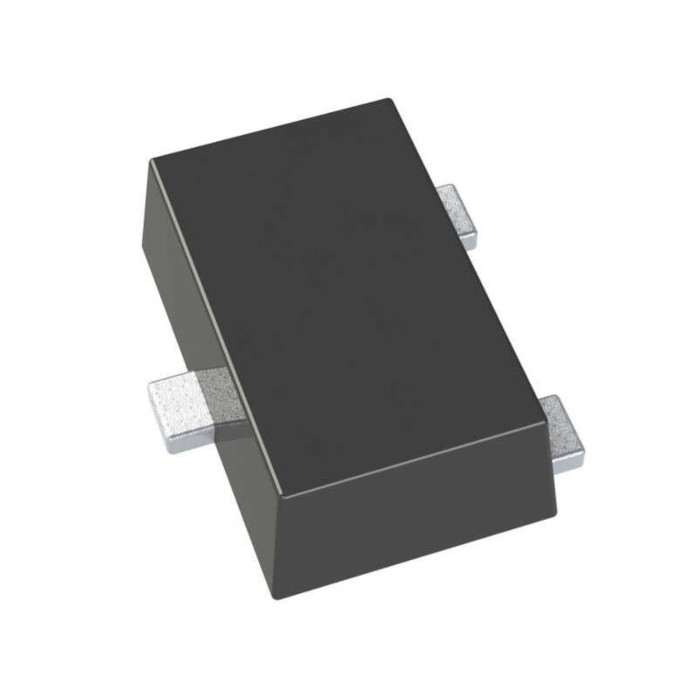

This magnetic switch operates reliably within a temperature range of -40°C to +85°C. It is housed in a SOT23F surface-mount package, suitable for automated assembly processes.



The TCS40DLR.LF(T is built using CMOS digital integrated circuit technology and is monolithic silicon. Its omnipolar function means it responds to both North and South poles of a magnet.

TCS40DLR.LFT Quick Information

Product Type: Magnetic Switch
Series: TCS40
Canonical Name: Toshiba TCS40DLR.LF(T Omnipolar Hall Effect Magnetic Switch
Subcategory: Magnetic Switch

TCS40DLR.LFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCS40DLR.LFT Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCS40DLR.LFT Features

  • Omnipolar Hall effect magnetic switch.
  • Operates from 2.3 to 5.5V supply.
  • Open drain output type.
  • SOT23F surface-mount package.
  • Wide -40 to +85°C temperature range.

TCS40DLR.LFT Applications

  • Suitable for position and proximity sensing.
  • Used in consumer and industrial devices.
  • Ideal for battery-operated equipment.
  • Detects magnetic field presence.
  • Interfaces directly with logic inputs.

TCS40DLR.LFT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TCS40DLR.LFT?

The operating voltage range is 2.3 V to 5.5 V.

What is the package type of the TCS40DLR.LFT?

The device is available in a SOT23F surface-mount package.

What is the operating temperature range?

The operating temperature range is -40 °C to +85 °C.

What is the output type of the TCS40DLR.LFT?

The output is open drain.

What magnetic field sensitivity does the TCS40DLR.LFT have?

The trip point is ±4.4 mT and the release point is ±0.9 mT.

Is the TCS40DLR.LFT sensitive to both north and south poles?

Yes, it is an omnipolar switch responding to both north and south poles.

What is the supply current of the TCS40DLR.LFT?

The supply current is 1.6 mA.
